Get Started with the SingleStore Snowpark App

Introduction

SingleStore is a distributed SQL database with sub-second (and often < 100 or even < 10 ms) performance at scale across various challenging workloads, even when high concurrency is required. These include transactions, point reads and writes, real-time ingestion, relational and JSON analytics, full-text search, vector search, and more.

Snowpark Container Services (SPCS) is a fully managed container offering designed to facilitate the deployment, management, and scaling of containerized applications within Snowflake. This service allows containerized workloads to run directly within Snowflake, preventing the need to move data out of the Snowflake environment for processing.

SingleStore, in combination with Snowflake, provides a very capable foundation to power the next generation of intelligent apps and operational workloads. With SingleStore’s Snowflake Native App, combining streaming data with Iceberg data is now an option for providing real-time analytics to applications built on Snowflake. Best of all, SingleStore’s data platform can be utilized without shifting the entire database out of Snowflake.

You can get the SingleStore Native App for Snowflake, SINGLESTORE_DB_APP, from the Snowflake Marketplace. It facilitates the creation, management, and scaling of SingleStore clusters from within your Snowflake deployment. The SingleStore app includes a set of Docker images, helper SQL scripts, and a comprehensive interface for managing clusters.

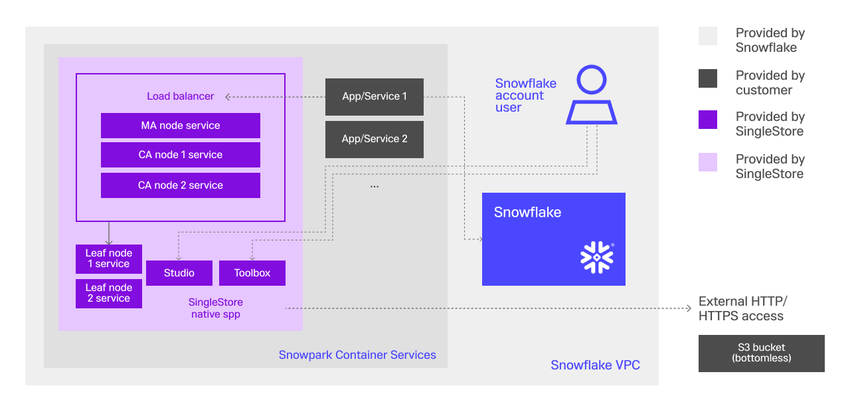

The following diagram is an overview of the full system architecture.

Prerequisites

Request Access

You must request access to the SingleStore app before you can use it. Access can only be granted to non-trial accounts.

Locate the SingleStore app in the Snowflake Marketplace.

Option 1: From the Snowflake Portal
- Log into the Snowflake Portal.
- In the search bar, search for SingleStore and click Marketplace to limit the search results to the Snowflake Marketplace.
Option 2: Not logged into the Snowflake Portal
- Navigate to the Snowflake Marketplace and click Browse Listings.
- In the search bar, search for SingleStore.
In the search results, click SingleStore’s Real-time Database for Intelligent Applications.
On the Real-time Database for Intelligent Applications page, click Request. A form is displayed. Fill out the form with the requested information and click Request.

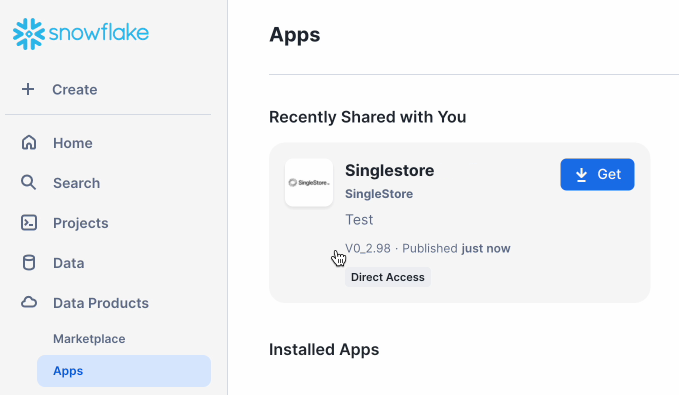

After your request has been approved, the SingleStore app appears under Data Products > Apps.
Click Get to download the SingleStore app. A confirmation dialog is displayed.

Select the warehouse in which to install the SingleStore app and click Get.

Once installed, the SingleStore app appears in Data Products > Apps > Installed Apps.
Click on the SingleStore app.

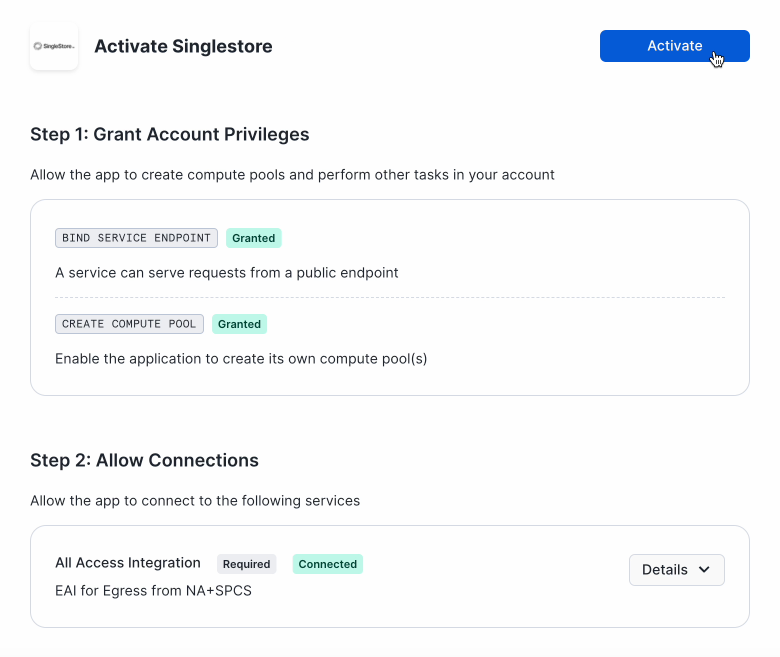

Under Grant Account Privileges, review the requested privileges and click Grant.

Under Allow Connections, click Review. Review the requested connections and click Connect.

When done, click Activate.

Set Up

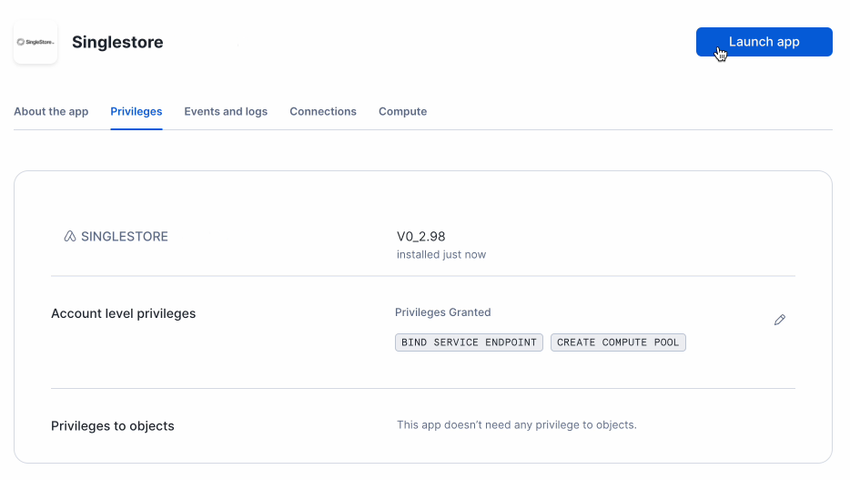

After the SingleStore app has been activated, click Launch app to launch it.

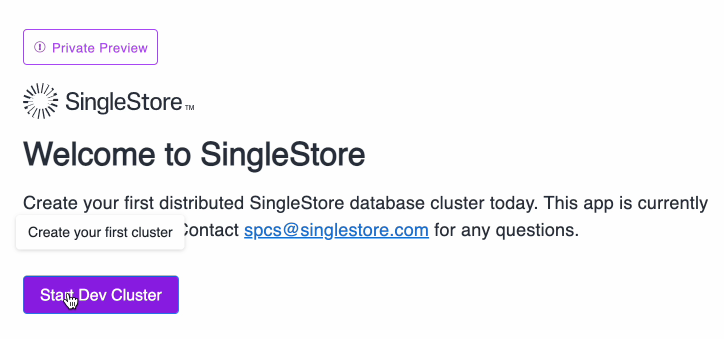

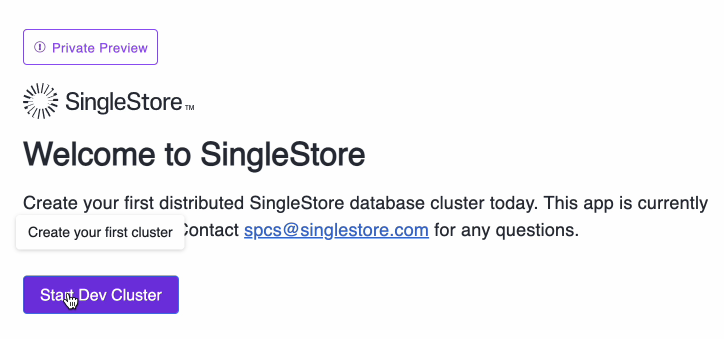

After a few moments, a Welcome to SingleStore page is displayed.

Click Start Dev Cluster to create a cluster.

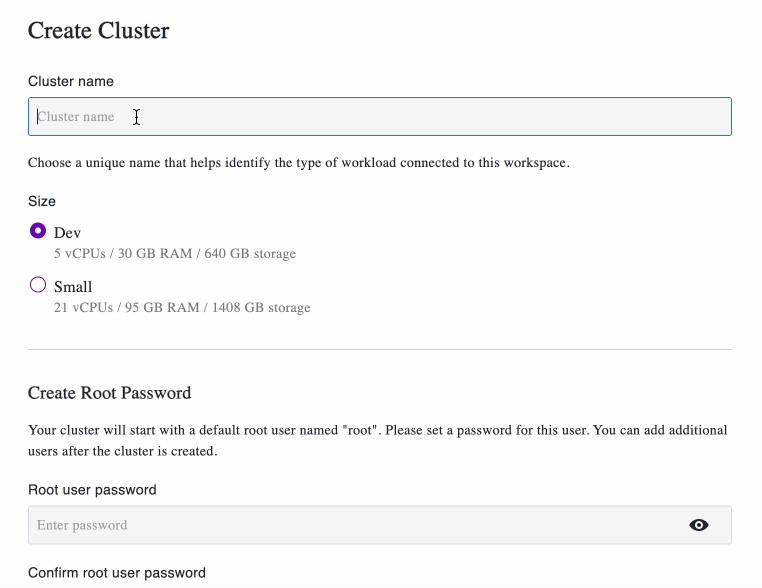

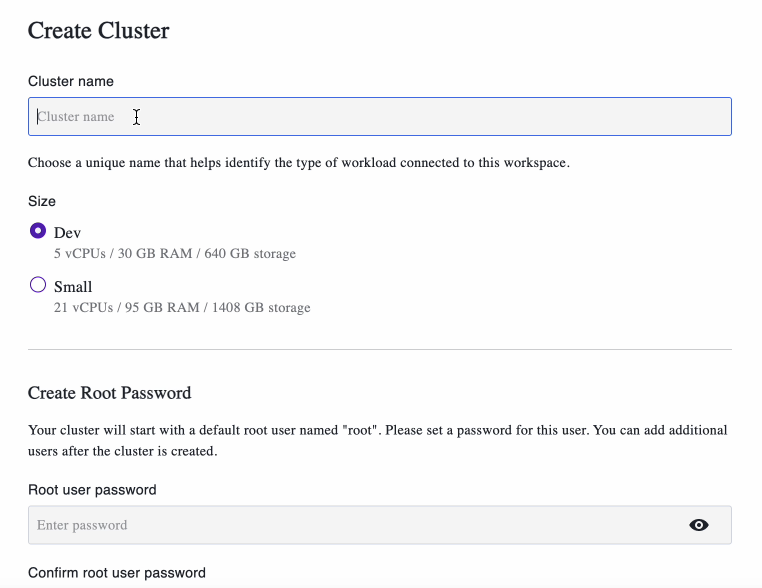

On the Create Cluster page, create a cluster.

Provide a name for this cluster. Choose a unique name that will help identify the type of workload connected with this cluster.

Select a cluster size to fit the workload. Larger clusters are available on request.

	Dev	Small
Master Aggregators	1	1
Child Aggregators	2	2
vCPUs per Aggregator	1	3
RAM per Aggregator (GB)	6	13
Storage per Aggregator (GB)	128	128
Leaf Nodes	2	2
vCPU per Leaf Node	1	6
RAM per Leaf Node (GB)	6	28
Storage per Leaf Node (GB)	128	512

Provide a password for the default database user.

Each cluster starts with a default database user named root, which requires a password to connect to the cluster.

Click Create Cluster. A progress bar is displayed as the cluster is created. It may take a few minutes to create the cluster.

Loading Data into SingleStore

The SQL Editor, which is included with each cluster, performs like a worksheet, where users can add multiple SQL queries and then select which queries to run. By default, the SQL Editor only runs the highlighted query. However, multiple queries can be highlighted and are then run sequentially.

To access the SQL Editor, which is part of SingleStore Studio:

Launch the SingleStore app.
Select your cluster from the drop-down.
Click Go to SingleStore Studio under the Advanced dropdown.
Connect to the selected cluster by using the root user and the password that you specified when the cluster was created.

Note

If an error is displayed while launching SingleStore Studio, try opening the link (as shown in the address bar) in a private/incognito window. You may be prompted to log into Snowflake.

Refer to SingleStore Studio SQL Editor for more information.

Amazon S3

SingleStore pipelines can extract objects from S3 buckets, optionally transform them, and insert them into a destination table. Refer to the Amazon S3 documentation for S3’s core concepts and the terminology.

The following is an example of how to load data from S3 via SingleStore pipeline. You can use the SingleStore Studio SQL Editor to enter and run the following SQL statements.

Create a SalesData table.

SQL

CREATE TABLE `SalesData` (
  `Date` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci,
  `Store_ID` bigint(20) DEFAULT NULL,
  `ProductID` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci,
  `Product_Name` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci,
  `Product_Category` text CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci,
  `Quantity_Sold` bigint(20) DEFAULT NULL,
  `Price` float DEFAULT NULL,
  `Total_Sales` float DEFAULT NULL
);

Define a SalesData pipeline to load data from S3 into SingleStore.

SQL

CREATE PIPELINE SalesData_Pipeline AS
LOAD DATA S3 's3://singlestoreloaddata/SalesData/*.csv'
CONFIG '{ \"region\": \"ap-south-1\" }'

INTO TABLE SalesData
FIELDS TERMINATED BY ','
LINES TERMINATED BY '\n'
IGNORE 1 lines;

Start the pipeline.
SQL
```
START PIPELINE SalesData_Pipeline;
```

Check for pipeline errors.

SQL

SELECT * FROM information_schema.PIPELINES_ERRORS WHERE pipeline_name = 'SalesData_Pipeline';

Confirm that this sample data was loaded.
SQL
```
SELECT * FROM SalesData;
```

Refer to Load Data from Amazon Web Services (AWS) S3 for more information.

Kafka

Apache Kafka is an open-source distributed event-streaming platform for high-performance data pipelines, analytics, data integration, and mission-critical applications.

Similar to S3, data from Kafka can be loaded into SingleStore via pipeline. For example, and borrowing from the Ridesharing Demo, the following SQL creates a Kafka pipeline to ingest trip data in real time. You can use the SingleStore Studio SQL Editor to enter and run the following SQL statements.

Note: The default networking rules only allow outbound HTTP traffic from a SingleStore cluster. To load the following sample data from Kafka, the following hostname must be explicitly set for each broker in Snowflake.

SQL

USE ROLE ACCOUNTADMIN;
ALTER NETWORK RULE SINGLESTORE_DB_APP_APP_DATA.CONFIGURATION.SINGLESTORE_DB_APP_ALL_ACCESS_EAI_NETWORK_RULE SET
    VALUELTST=
    '0.0.0.0:443',
    '0.0.0.0:80*',
    'pkc-rgm37.us-west-2.aws.confluent.cloud:9092',
    'b0-pkc-rgm37.us-west-2.aws.confluent.cloud:9092',
    'b1-pkc-rgm37.us-west-2.aws.confluent.cloud:9092',
    'b2-pkc-rgm37.us-west-2.aws.confluent.cloud:9092',
    'b3-pkc-rgm37.us-west-2.aws.confluent.cloud:9092',
    'b4-pkc-rgm37.us-west-2.aws.confluent.cloud:9092',
    'b5-pkc-rgm37.us-west-2.aws.confluent.cloud:9092'
}

SQL

DROP PIPELINE IF EXISTS rideshare_kafka_trips;
CREATE OR REPLACE PIPELINE rideshare_kafka_trips AS
    LOAD DATA KAFKA 'pkc-rgm37.us-west-2.aws.confluent.cloud:9092/ridesharing-sim-trips'
    CONFIG '{"sasl.username": "username",
         "sasl.mechanism": "PLAIN",
         "security.protocol": "SASL_SSL",
         "ssl.ca.location": "/etc/pki/ca-trust/extracted/pem/tls-ca-bundle.pem"}'
    CREDENTIALS '{"sasl.password": "password"}'
    DISABLE OUT_OF_ORDER OPTIMIZATION
    REPLACE INTO TABLE trips
    FORMAT JSON
    (
        id <- id,
        rider_id <- rider_id,
        driver_id <- driver_id,
        status <- status,
        @request_time <- request_time,
        @accept_time <- accept_time,
        @pickup_time <- pickup_time,
        @dropoff_time <- dropoff_time,
        fare <- fare,
        distance <- distance,
        pickup_lat <- pickup_lat,
        pickup_long <- pickup_long,
        dropoff_lat <- dropoff_lat,
        dropoff_long <- dropoff_long,
        city <- city
    )
    SET request_time = STR_TO_DATE(@request_time, '%Y-%m-%dT%H:%i:%s.%f'),
        accept_time = STR_TO_DATE(@accept_time, '%Y-%m-%dT%H:%i:%s.%f'),
        pickup_time = STR_TO_DATE(@pickup_time, '%Y-%m-%dT%H:%i:%s.%f'),
        dropoff_time = STR_TO_DATE(@dropoff_time, '%Y-%m-%dT%H:%i:%s.%f');
START PIPELINE rideshare_kafka_trips;

-- Create a riders table and kafka pipeline that consumes the ridesharing-sim-riders topic and upserts data.
DROP TABLE IF EXISTS riders;
CREATE TABLE riders (
    id VARCHAR(255) NOT NULL,
    first_name VARCHAR(255),
    last_name VARCHAR(255),
    email VARCHAR(255),
    phone_number VARCHAR(255),
    date_of_birth DATETIME(6),
    created_at DATETIME(6),
    location_city VARCHAR(255),
    location_lat DOUBLE,
    location_long DOUBLE,
    status VARCHAR(20),
    PRIMARY KEY (id),
    SORT KEY (status, location_city)
);
DROP PIPELINE IF EXISTS rideshare_kafka_riders;
CREATE OR REPLACE PIPELINE rideshare_kafka_riders AS
    LOAD DATA KAFKA 'pkc-rgm37.us-west-2.aws.confluent.cloud:9092/ridesharing-sim-riders'
    CONFIG '{"sasl.username": "username",
         "sasl.mechanism": "PLAIN",
         "security.protocol": "SASL_SSL",
         "ssl.ca.location": "/etc/pki/ca-trust/extracted/pem/tls-ca-bundle.pem"}'
    CREDENTIALS '{"sasl.password": "password"}'
    DISABLE OUT_OF_ORDER OPTIMIZATION
    REPLACE INTO TABLE riders
    FORMAT JSON
    (
        id <- id,
        first_name <- first_name,
        last_name <- last_name,
        email <- email,
        phone_number <- phone_number,
        @date_of_birth <- date_of_birth,
        @created_at <- created_at,
        location_city <- location_city,
        location_lat <- location_lat,
        location_long <- location_long,
        status <- status
    )
    SET date_of_birth = STR_TO_DATE(@date_of_birth, '%Y-%m-%dT%H:%i:%s.%f'),
        created_at = STR_TO_DATE(@created_at, '%Y-%m-%dT%H:%i:%s.%f');
START PIPELINE rideshare_kafka_riders;

Refer to Load Data from Kafka for more information.

Iceberg

Apache Iceberg is an open table format that simplifies data management by enabling seamless and scalable data storage across different platforms without the need for complex ETL processes. If the data you want to use with SingleStore is already inside of Snowflake, Iceberg is the easiest and most cost effective way to move it to SingleStore. You can create Iceberg tables in Snowflake and ingest them directly into SingleStore with no other tools and without burning any Snowflake credits.

Refer to Snowflake’s Apache Iceberg™ tables, Iceberg Ingest, and Get More From Your Data with SingleStore + Snowflake Integration video for more information.

Ridesharing Demo

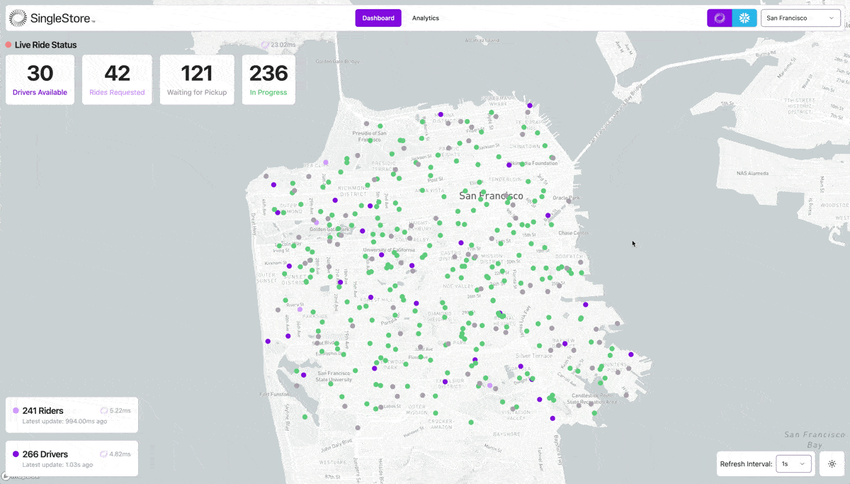

To help demonstrate what the combination of Snowflake data, the SingleStore app, and Iceberg tables can deliver, SingleStore has created a real-time ridesharing simulation. This simulation demonstrates how an existing analytics app built on top of Snowflake data can be augmented with real-time analytics powered by SingleStore. The Iceberg Integration video provides an overview of SingleStore’s Iceberg integration

The instructions in the GitHub repository show how to set up SingleStore and the ridesharing simulation in SPCS, ingest Snowflake data through Iceberg, and connect existing Kafka streams to feed-in real-time information, all without sacrificing the ownership of the Snowflake data.

To build the ridesharing simulation in your own cluster, refer to Ridesharing Simulation in Snowpark.

Manage the Cluster

SingleStore App Interface

Function	Description

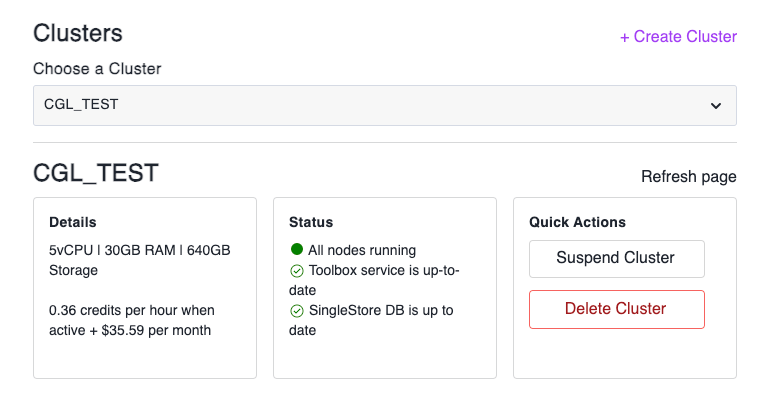

View the Cluster Status	The selected cluster's status is displayed in the SingleStore app and in the main dashboard when SingleStore Studio first opens.
Upgrade SingleStore	Upgrades the cluster to the latest version of SingleStore.
Upgrade Toolbox	Upgrades the cluster to the latest version of Toolbox.
Suspend a Cluster	Suspends a cluster. When a cluster is suspended, the cluster name and connection endpoint are preserved, but the cluster does not process queries or consume credits. Storage metering is unaffected.
Resume a Cluster	Resumes a suspended cluster.
Repair a Cluster	If the cluster is in an unhealthy state, all stopped services will be resumed and the Toolbox service will be restarted to repair the cluster.
Delete a Cluster	Deletes a cluster. Deleting a cluster stops all running queries and permanently removes the cluster and its data.
Toolbox Management Console	Provides Toolbox-level access to the cluster via a command line. Note: As this feature can render a cluster unusable, use it with caution. Note: If an error is displayed while opening the Toolbox Management Console, try opening the link (as shown in the address bar) in a private/incognito window. You may be prompted to log into Snowflake.
Get Service Logs	This obtains the service logs using the `SYSTEM$GET_SERVICE_LOGS` function. The result is saved on the `@workspace` stage of the selected cluster.
Get Cluster Report	This runs the sdb-report collect command on the cluster. By default, all standard collectors are run. Standard collectors can be excluded, and additional collectors can be included. The result is saved on the `@workspace` stage of the selected cluster.

Snowflake Worksheet

You may also interact with and manage a SingleStore cluster directly from a SQL worksheet in Snowflake using the following stored procedures.

Description	Stored Procedure
Obtain the TCP host for connecting to the cluster	SQL CORE.GET_APP_S2_HOST_ENDPOINT(INSTANCE_NAME)
Retrieve the SingleStore Studio and TTYD endpoints	SQL CORE.GET_APP_ENDPOINT(INSTANCE_NAME)
Run SQL commands directly against a cluster	SQL CORE.SQL_COMMAND(INSTANCE_NAME, USER, PASSWORD, SQL
List all services within the cluster	SQL CORE.LIST_APP_INSTANCE(INSTANCE_NAME)
Upgrade SingleStore for all nodes in a cluster	SQL CORE.CLUSTER_UPGRADE(INSTANCE_NAME)
Upgrade the Toolbox service for a cluster	SQL CORE.TOOLBOX_SERVICE_UPGRADE(INSTANCE_NAME)
Suspend a cluster	SQL CORE.STOP_APP_INSTANCE(INSTANCE_NAME)
Resume a cluster	SQL CORE.START_APP_INSTANCE(INSTANCE_NAME)
Permanently delete a cluster This action is irreversible and requires confirmation	SQL CORE.DROP_APP_INSTANCE(INSTANCE_NAME)

Obtain Support

To obtain support with the SingleStore app, either email spcs@singlestore.com or file a Support ticket.
