Sort Key

The sort key is an index that groups rows of columnstore tables into logical segments, where each segment contains data for many rows. The sort key can be defined on a single column or multiple columns of a columnstore table.

To specify a sort key, use SORT KEY. The sort key order can be specified as ascending (SORT KEY(<index_column_name>)) or descending (SORT KEY(<index_column_name> DESC)). A columnstore sort key cannot be altered once the table has been created. To create an unsorted columnstore table, specify an empty sort key using SORT KEY().

A table scan using a sort key scans the table in the order of the sort key. A sort key cannot be used to scan a table in the reverse order of the sort key order.

The following example creates a table, t1, with a sort key on col1 in descending order. In the first query in the example below, the sort order in the query (DESC) matches the sort order of the SORT KEY, and the table is scanned using the SORT KEY. In the second query, the sort order in the query (ASC) does not match the sort order of the SORT KEY, and the SORT KEY is not used in the table scan.

CREATE TABLE t1(col1 int, SORT KEY(col1 DESC));

EXPLAIN SELECT * FROM t1 ORDER BY col1 DESC;

+------------------------------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                                          |
+------------------------------------------------------------------------------------------------------------------+
| GatherMerge [remote_0.col1 DESC] partitions:all alias:remote_0                                                   |
| Project [t1.col1]                                                                                                |
| OrderedColumnStoreScan test1.t1, KEY col1 (col1 DESC) USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore |
+------------------------------------------------------------------------------------------------------------------+
3 rows in set (0.00 sec)

EXPLAIN SELECT * FROM t1 ORDER BY col1;

+-----------------------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                                   |
+-----------------------------------------------------------------------------------------------------------+
| GatherMerge [remote_0.col1] partitions:all alias:remote_0                                                 |
| Project [t1.col1]                                                                                         |
| Sort [t1.col1]                                                                                            |
| ColumnStoreScan test1.t1, KEY col1 (col1 DESC) USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore |
+-----------------------------------------------------------------------------------------------------------+
4 rows in set (0.01 sec)

The following example creates a table with an empty sort key.

CREATE TABLE t1(col1 int, SORT KEY( ));

EXPLAIN SELECT * FROM t1;

+---------------------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                                 |
+---------------------------------------------------------------------------------------------------------+
| Gather partitions:all alias:remote_0                                                                    |
| Project [t1.col1]                                                                                       |
| ColumnStoreScan test8.t1, KEY __UNORDERED () USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore |
+---------------------------------------------------------------------------------------------------------+

SingleStore recommends defining a shard key to explicitly control the data distribution. The following example defines a shard key on id. Sharding on a high cardinality identifier column generally allows for more even distribution and prevents skew. Refer to Understanding Shard Key Selection for more information.

CREATE TABLE people (
    id INT AUTO_INCREMENT,
    user VARCHAR(24),
    first VARCHAR(24),
    last VARCHAR(24),
    SORT KEY (user),
    SHARD KEY (id)
);

Setting the shard key and the sort key on the same column improves data compression.

Refer to Managing Columnstore Segments for additional information about columnstore segments.

Segment Elimination

The single most important consideration for columnstore tables is setting a sort key. Each segment file contains metadata that holds the minimum and maximum values for the rows in the segment. The minimum/maximum value metadata is used at query execution time to determine whether a segment can possibly match a filter; if not, the segment is skipped entirely and no data is examined. This functionality is called segment elimination because the segment is eliminated from the scan.

For queries that filter on the sort key column of the columnstore index, segment elimination is typically very efficient as row segments within each row segment group will not have overlapping segments.

The segment size (number of rows per segment) also impacts query execution with respect to the sort key. A smaller segment size means that a smaller number of rows are read from the segments that pass segment elimination. Column segments typically contain on the order of tens of thousands of rows.

Indexing further cuts down on the number of rows scanned when a select query with a WHERE clause is executed. If the table has an index for the columns in the WHERE clause, the engine can quickly determine the location of the matching rows position to seek without having to look at all the data. This is much faster than reading every row sequentially.

The figures below show three segments of the people table. The segment size is 3 rows for readability.

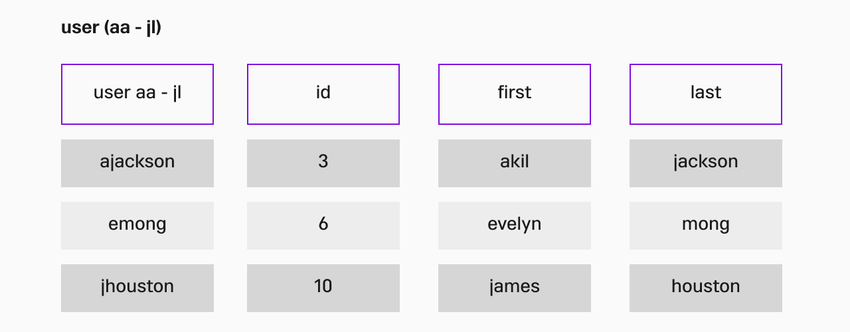

Segment #1 of 3 - user values aa - jl

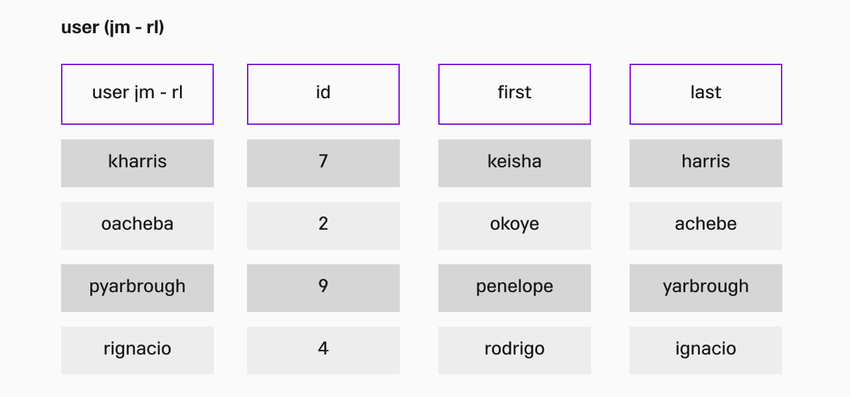

Segment #2 or 3 - user values jm - rl

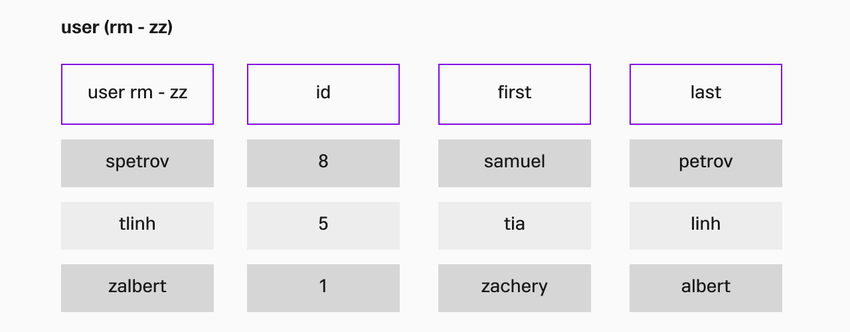

Segment #3 of 3 - user values rm - zz

If a query is searching for a person whose first name starts with an "a", then only the first segment is scanned. The other two segments are eliminated from the scan since those user values are "jm - zz".

Multi-Column Sort Keys

Sort keys can be defined on multiple columns, which can improve performance in certain cases.

Storage

The following examples show how a table is stored with a single-column sort key followed by how the table is stored with a two-column sort key.

The data in a partition is broken into segments based on the sort key order and the segment size. (Refer to Configuring the Columnstore to Work Effectively for more information.)

Create a table named INTEGERS with a single-column sort key.

SQL

Copy

CREATE TABLE INTEGERS (
    A int,
    B int,
    SORT KEY (A)
);

The data in the INTEGERS table will be sorted on column A, and then broken into segments, so that segments contain contiguous values of column A.

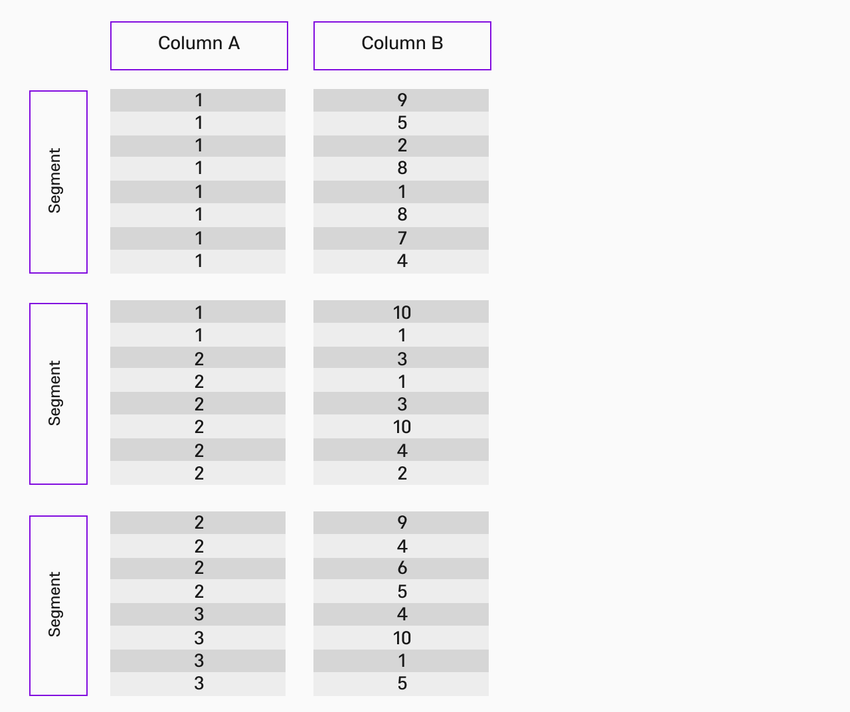

The figure below shows how the data is stored with the single-column sort key. If the integers 1 - 10 are inserted into columns A and B, and the segment size is 8, the first three columnstore segments would look as follows. The segmentation is defined by the sort key order.

For a multi-column sort key, the data in a partition is also broken into segments based on the sort key order and the segment size.

The command below creates a table named INTEGERS with a multi-column sort key on columns A and B.

SQL

Copy

CREATE TABLE INTEGERS (
    A int,
    B int,
    SORT KEY (A,B)
);

The data in this table will be sorted on column A, and secondarily on column B, and then broken into segments so each segment contains a contiguous segment of data in that (multi-column) sort order.

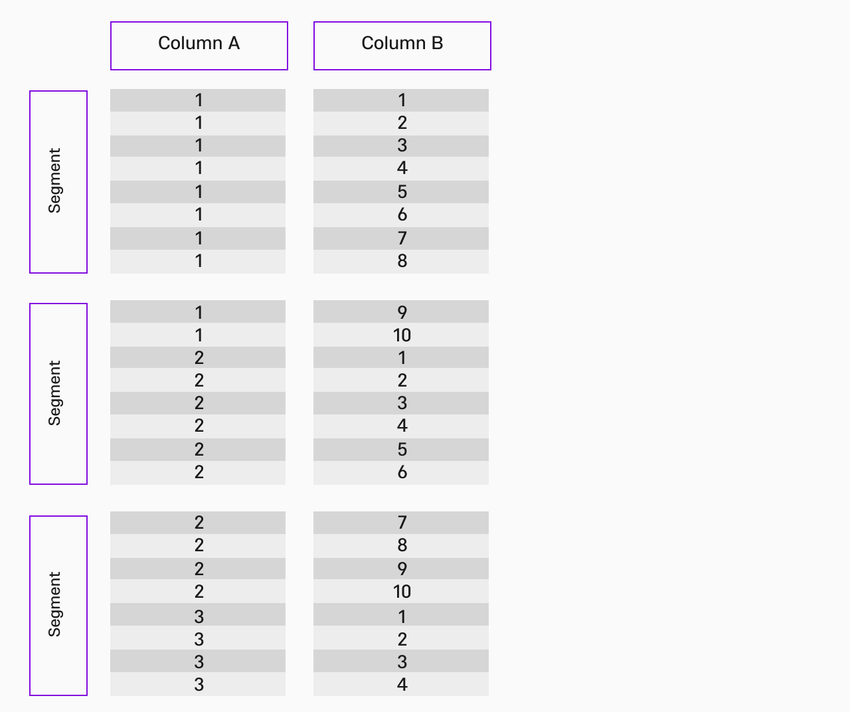

The figure below shows how the data is stored with the multi-column sort key. If the integers 1 - 10 are inserted into columns A and B, and the segment size is 10, the first three columnstore segments would look as follows. The segmentation is defined by the sort key order - sorting the data first on the values in A, and then secondarily on the values in column B.

Questions to Ask When Choosing Sort Keys
