Develop with Notebooks

Prototyping applications or analyzing via notebooks in SingleStore Helios follows the same general principles as developing with notebooks in general.

To get started, connect to a data source.

Connect to Data Sources

SingleStore Helios supports internal and external data sources. Internal data sources are databases that exist within your workspace. An external data source could be an AWS S3 bucket, for example.

Connect to a SingleStore Data Source

Once you select a workspace, you can access all of the databases attached to that workspace. You cannot connect to databases that are not attached to the workspace you are using.

You can specify a default database for your notebook, eliminating the need to specify the database context every time you make a query on that default database. To set a default database, select a database from the drop-down menu.

No default database specified:

A workspace with no specified database.

Default database specified:

A workspace with a specified database.

Connecting via SQL

To connect to the default database, you do not need to pass any database context to query that database:

%%sql
SELECT * FROM mytable;

To connect to a non-default database, you will need to specify the database in your query:

%%sql
USE mydatabase;
SELECT * FROM mytable;

You can also use "dot" notation:

%%sql
SELECT * FROM mydatabase.mytable;

Connecting via Python

When connecting via Python to the default database, use the predefined connection string variable, connection_url:

from sqlalchemy import *
db_connection = create_engine(connection_url)

You can then use that connection string (db_connection above) to connect to SingleStore. Here's an example of creating a table using that connection string:

query1 = 'create table people (filename varchar(255), vector blob, shard(filename))'
with db_connection.connect() as conn:
conn.execute(text(query1))

When connecting to other databases, use the following method where user (connection_user), password (connection_password), host (connection_host), and port (connection_port) are already defined based on the workspace you selected.

from sqlalchemy import *
database_name = 'mydatabase'
db_connection_str = "singlestoredb://"+connection_user+":"+connection_password+"@"+connection_host+":"+connection_port+"/"+database_name
db_connection = create_engine(db_connection_str)

You can then use that connection string (db_connection above) to connect to SingleStore:

query1 = 'create table people (filename varchar(255), vector blob, shard(filename))'
with db_connection.connect() as conn:
conn.execute(text(query1))

Connect to an External Data Source

SingleStore Helios lets you control which endpoint to access from notebooks to provide secure outbound access to trusted resources.

By default, connections are limited to SingleStore databases; however, you can enable and disable connections to other external endpoints via the allowlist.

Only users with the Organization Owners role can add external connections.

When trying to access an external endpoint from a notebook that is not in the allowlist, you should see the following warning:

To fix this issue, select Add to Firewall and then select Save. The external connection is automatically added into the allowlist. The notebook cell will be executed.

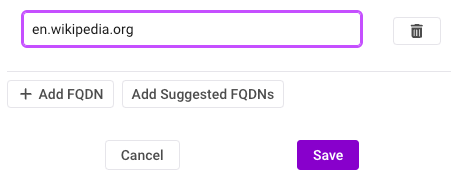

Adding external endpoint in FQDN allowlist.

If you do not have access due to your role, your organization owner can manually add or remove the external endpoint using the following steps:

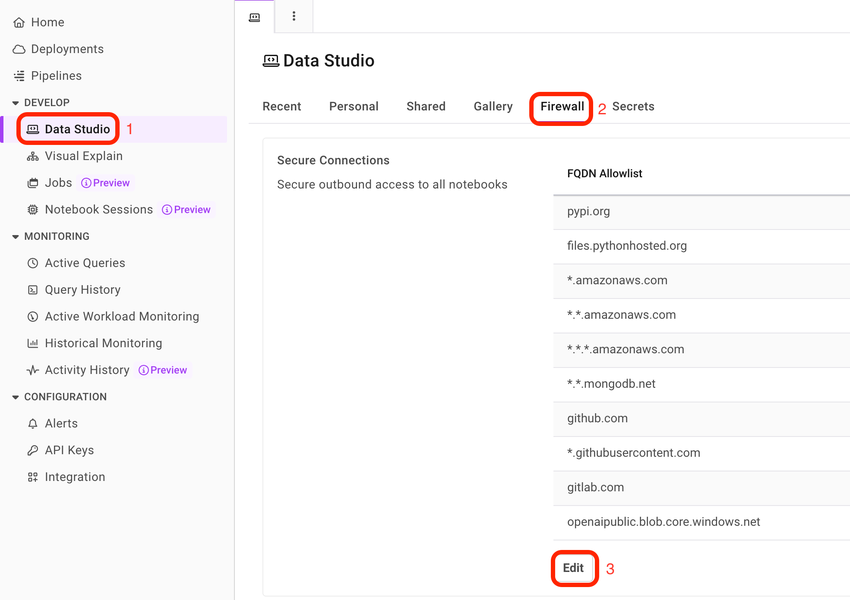

Steps to edit Firewall.
  1. In the left navigation, under Develop select Data Studio.

  2. Select the Firewall tab in the main window.

  3. Select Edit to add new endpoints:

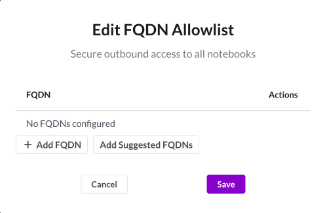

    The Edit FQDN Allowlist dialog with Add FQDN button and Add Suggested FQDN button, with Cancel and Save buttons.
  4. In the Edit Allowlist dialog, you can add a Fully Qualified Domain Name (FQDN) or select from a list of suggested FQDNs (for example pypi.org, github.com, or *.s3.*.amazonaws.com).

    You can provide wildcard access to an endpoint by using the * character. The wildcard character represents 0 or more valid DNS characters, except for '.'.

    *.singlestore.com matches docs.singlestore.com but not singlestore.com because it only matches up to the '.' character. ex*le.com matches example.com but not examp-site.com.

    For example, to access any AWS S3 endpoints, you can use the following syntax:  *.s3.*.amazonaws.com.

  5. Select Save.

To remove a connection select the Trash icon next to the connection in the Edit FQDN Allowlist dialog.

Manage Cells

Use the same commands and techniques you use with most other Python based cells in notebooks.

Cell Types

A notebook cell can be one of these types:

  • Markdown: lightweight markup language used to add formatting to plain text. More information here.

  • Python: language supported is Python 3.

  • SQL: language supported is SQL (for SingleStore).

Specify the cell type by selecting a cell and choosing a type from the drop-down menu:

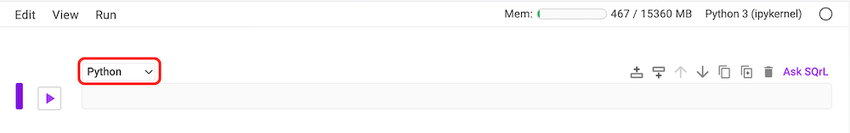

Specify the cell type as Python from the drop-down list.

Run a cell

Execute/run a cell via keyboard shortcut (Shift+Return/Enter) or by selecting the run (play button) icon at the left of the notebook cell, or by selecting Run Selected Cell option from the Run menu in the toolbar.

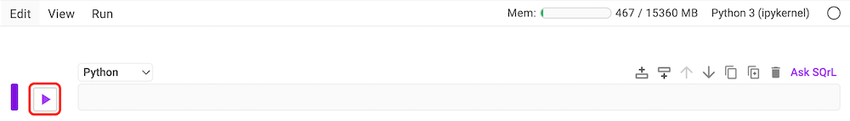

Select play button to run the cell.

Run Multiple Cells

Execute/run multiple selected cells using the following options from the Run menu in the toolbar:

  • Run Selected Cell and All Below

  • Run All Above and Selected Cell

  • Run All Cells

  • Restart and Run All Cells

Manipulating Cells

When you select a cell, some icons for basic cell manipulation appear:

Action

Icon

Description

Add a cell

Icons for adding a cell above or below the current cell.

Add a new cell above or below the selected cell.

Move

Arrow up and down icons.

Move the selected cell up or down.

Copy

Copy the selected cell.

Duplicate

Duplicate Icon

Duplicate the current cell and place it immediately below the current cell.

Delete

Trash Can icon for Delete.

Delete the selected cell.

Ask SQrL

Ask SQrL icon

An AI-powered co-pilot (SQrL) answers questions.

For more options, right-click/control-click on a cell to open the cell context menu.

From the context menu, you can perform additional cell functions, such as split and merge.

Keyboard shortcuts exist for most common tasks as well.

Right-click/control-click on a cell to open the cell context menu. Keyboard shortcuts for manipulating cells

Manage Cell Inputs and Output

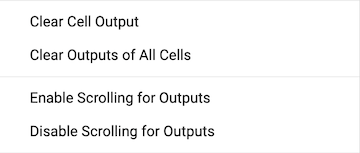

Right-click/control-click on a cell to open the cell context menu.

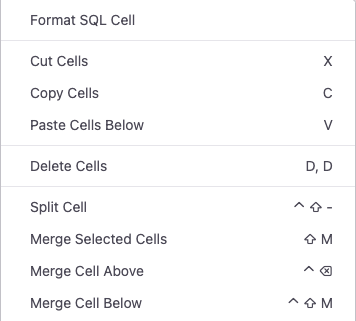

Right-click/control-click on a cell to open the cell context menu to manage cells.

An additional option Format SQL Cell is available when the selected cell is using the SQL language (via the %%sql magic command or the SQL cell).

You can also show/hide cell output by selecting the vertical bar (purple) next to the output. Before:

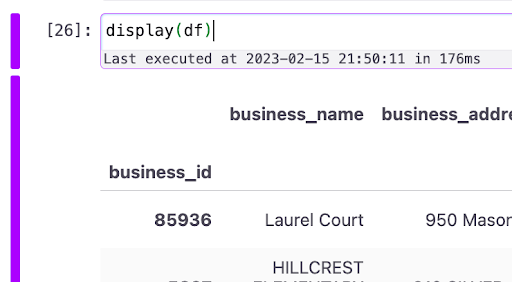

Example of a vertical "bar" alongside a cell's output, expanded below the cell.

After selecting the bar:

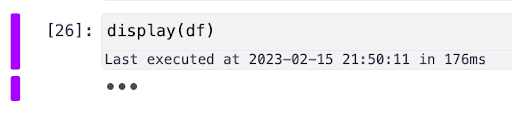

An example of the truncated vertical "bar" after the cell output is collapsed.

Use Multiple Languages

You can set the default language for SingleStore Helios notebooks to either SQL or Python3.

You can select the language for a cell via the toggle located above the cell:

Cell type from the drop-down list above each cell.

Python Cells

Python 3 is the default language for Python cells. See the Python documentation for more information about using Python.

SQL Cells

There are two options to write SQL in SingleStore Notebooks. The first involves selecting a cell type to be SQL. The following example shows how to specify a default database (mydatabase) and the syntax used to connect to another database (mydatabase2) for use in joins with an SQL cell:

USE mydatabase; -- the database to use by default
SELECT * from mytable mt1
INNER JOIN mydatabase2.mytable2 mt2 ON mt1.mycolumnid1 = mt2.mycolumnid2;

The next option is to use the SQL magic from within a Python cell. This gives you the ability to write SQL and Python code in a single block:

%%sql - switch the cell to SQL
USE mydatabase; -- the database to use by default
SELECT * FROM mytable mt1
INNER JOIN mydatabase2.mytable2 mt2 ON mt1.mycolumnid1 = mt2.mycolumnid2;

The results are displayed as a table.

You can also save and use the output from the calculation in an SQL cell (called output_reviews in this example) in another Python cell with the following options:

Using cell output - Save result to:

Execute SQL commands using SQL cell type.

Or, using SQL magic:

%%sql output_reviews << -- switch the cell to SQL and specify the output as output_reviews
SELECT * FROM reviews

This output can then be used in other cells, etc. For example, in this example, output_reviews is used with Python as a dataframe:

df = pd.DataFrame(output_reviews)

SQL Line

Use %sql to enable a single line of SQL in a Python cell:

result = %sql USE s2_dataset_martech; SELECT * FROM offers GROUP BY customer LIMIT 10

Combine SQL and Python in the same cell:

result = %sql USE s2_dataset_martech; SELECT * FROM offers GROUP BY customer
df = pd.DataFrame(result)

Manage Libraries

SingleStore Helios notebooks come with pre-installed libraries, and you can install additional libraries as needed.

Pre-installed Libraries

Run the following command in a Python cell to see the list of pre-installed libraries:

!pip list

Install and Import Libraries

SingleStore supports libraries available from https://pypi.org/ . This example shows how to install a library from the Kaggle open dataset.

!pip3 install opendatasets

To update the version of a pre-installed library:

!pip3 install plotly --upgrade

Once a library is installed, you can import library components and add an alias:

import opendatasets as od

Tip

For better clarity, have one cell at the beginning of the notebook with all additional libraries to install and have a second cell listing the libraries to import. You can then collapse the two cells to remove clutter.

Magic Commands

For a specific cell, to see all the supported magic commands:

%lsmagic

For information about the full list of available magic commands:

%quickref

Some helpful magic commands:

Magic Command

Description

%history

View the log of the session activity for the notebook.

%pinfo <variable>

Details of the object stored in the specified variable.

%time

Show the time of execution of a Python or SQL statement.

%who

List all of the currently defined variables within the notebook.

Useful Shortcuts

There are two modes in a notebook: command and edit. Command mode is activated by pressing ESC. Edit mode is activated by pressing Enter.

Command and Edit Mode Shortcuts

Task

Mac

Windows

Run the current cell, select below

Shift + Enter

Shift + Enter

Run selected cells

Command + Enter

Ctrl + Enter

Run the current cell, insert below

Option + Enter

Alt + Enter

Save and checkpoint

Command + S

Ctrl + S

Command Mode Shortcuts

Task

Mac

Windows

Enter edit mode

Enter

Enter

Select cell above

Up

Home

Select cell below

Down

End

Extend selected cells above

Shift + Up

Shift + Home

Extend selected cells below

Shift + Down

Shift + End

Insert cell above

A

A

Insert cell below

B

B

Cut selected cells

X

X

Copy selected cells

C

C

Paste cells below

V

V

Paste cells above

Shift + V

Shift + V

Move cell up

Ctrl + Shift + Up

Ctrl + Shift + Home

Move cell down

Ctrl + Shift + Down

Ctrl + Shift + End

Split cell

Ctrl + Shift + Minus (-)

Ctrl + Shift + Minus (-)

Delete selected cells

D, D (press twice)

D, D (press twice)

Undo cell operation

Z

Z

Redo cell operation

Shift + Z

Shift + Z

Merge selected cells

Shift + M

Shift + M

Merge cell above

Ctrl + Delete

Ctrl + Backspace

Merge cell below

Ctrl + Shift + M

Ctrl + Shift + M

Save and checkpoint

S

S

Change the cell type to Code

Y

Y

Change the cell type to Markdown

M

M

Scroll notebook up

Shift + Space

Shift + Space

Scroll notebook down

Space

Space

Find

Command + F

Ctrl + F

Find next

Command + G

Ctrl + G

Find previous

Shift + Command + G

Shift + Ctrl + G

Show line numbers

Shift + L

Shift + L

Render side-by-side

Shift + R

Shift + R

Edit Mode Shortcuts

Task

Mac

Windows

Go to command mode

Esc

Esc

Select all cells

Command + A

Ctrl + A

Undo

Command + Z

Ctrl + Z

Redo

Shift + Command + Z

Shift + Ctrl + Z

Go to cell start

Command + Up

Ctrl + Home

Go to cell end

Command + Down

Ctrl + End

Go one word left

Command + Left

Ctrl + Left

Go one word right

Command + Right

Ctrl + Right

Last modified: November 26, 2024
