Forwarding Audit Logs

On this page

Warning

Including customer credentials or other sensitive or confidential information through Zendesk or email puts both you, our customer, and SingleStore at risk, as the subject credentials may be exposed to unauthorized parties.

Please use a secure secrets management solution when sharing credentials via any means with SingleStore or any other third party.

SingleStore Helios supports forwarding audit logs to third-party tools. Here's a list of some common supported third-party tools/integrations:

  • Amazon CloudWatch

  • Amazon S3

  • Azure Blob

  • Azure Log Analytics

  • Datadog

  • Kafka

  • Loki

  • New Relic

  • Slack

  • Splunk

See Outputs for a list of all the supported integrations.

Prerequisites

Contact SingleStore Support and provide the requested information to configure audit log forwarding.

Requirements

Here are the requirements for some common supported third-party integrations:

Amazon CloudWatch

  • Your AWS access key ID and secret access key.

  • log_group_name: The name of the CloudWatch Log Group to send records to.

  • log_stream_name: The name of the CloudWatch Log Stream to send records to.

  • region: The AWS region.

See Amazon CloudWatch for more information.

Amazon S3

  • Your AWS access key ID and secret access key.

  • bucket: The name of your S3 bucket.

  • region: The AWS region of your S3 bucket.

See Amazon S3 for more information.

Datadog

  • apikey: Your Datadog API key.

  • Host: The Datadog server to send logs to.

  • TLS: Enable/disable end-to-end security communications protocol.

See Datadog for more information.

Audit Log Formats

Audit logs are parsed and represented as JSON formatted records in third-party tools.

Each forwarded audit log record can have one of the following schema:

Schema for First Line

The first line of a log file describes the reason/action that resulted in the creation of a new log file:

{
    "id": "0",
    "time": "2022-06-21 18:49:25.888",
    "origin": "Log opened on MemSQL startup",
    "version": "Format version 2",
    "action": "Logging at level ADMIN-ONLY-INCLUDING-PARSE-FAILS"
}

Field

Description

id

Represents the unique identifier for the log entry within the scope of a single log file. This value is always 0 for the first line in a log file.

time

Specifies the local timestamp when the action/event occurred.

origin

Specifies the reason/event that resulted in the creation of the log file.

version

Specifies the log format version.

action

Specifies the reason/event that opened or rotated the log file.

Schema for Login Attempt Logs

Each login attempt is logged in the following format:

{
    "id": "28179",
    "endpoint": "node-37775b0a-6feb-4b61-98a7-master-0:3306",
    "nodetype": "agg",
    "threadid": "99996",
    "username": "root",
    "remotehost": "localhost",
    "usergrant": "root@%",
    "authtype": "password",
    "status": "SUCCESS"
}

Field

Description

id

Represents the unique identifier for the log entry within the scope of a single log file.

endpoint

Specifies the hostname or IP address of the SingleStore Heliosworkspace.

nodetype

Specifies the type of node. It can have one of the following values: agg (aggregator) and leaf (leaf).

threadid

Specifies the ID of the thread that is running the statement.

username

Specifies the username that is trying to log in.

remotehost

Specifies the hostname or IP address that the client is using to connect to the workspace. This value is detected by the server and not reported by the client.

usergrant

The 'username'@'hostname' specification that defines the user for whom authentication is being attempted.

authtype

Specifies the authentication method for the user, for example password, PAM, Kerberos, etc.

status

Indicates the SUCCESS or FAILURE of the login query.

Schema for General Entries

Queries are logged as general entries in the following format:

{
    "id": "28151",
    "endpoint": "node-37775b0a-6feb-4b61-98a7-master-0:3306",
    "nodetype": "agg",
    "aggregatorid": "1",
    "threadid": "99996",
    "username": "root",
    "database": "[unknown]",
    "queryhash": "3505599087362974304",
    "query": "GRANT CREATE LINK\\,DROP LINK\\,SHOW LINK ON *.* TO 'admin'"
}

Field

Description

id

Represents the unique identifier for the log entry within the scope of a single log file.

endpoint

Specifies the hostname or IP address of the SingleStore Heliosworkspace.

nodetype

Specifies the type of node. It can have one of the following values: agg (aggregator) and leaf (leaf).

aggregatorid

Specifies the ID of the aggregator that is running the query.

threadid

Specifies the ID of the thread that is running the query.

username

Specifies the username that is running the query.

database

Specifies the database name.

queryhash

Specifies the unique hash of the query signature or the query text.

query

Specifies the query signature or the query text.

View Audit Logs

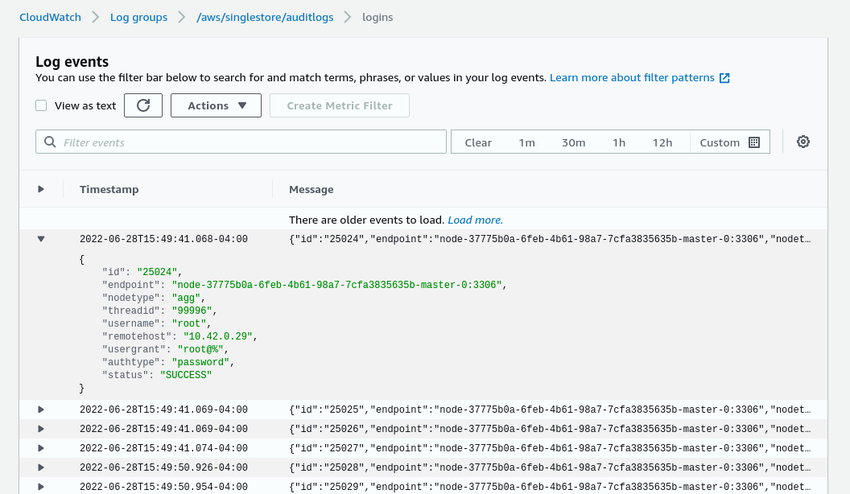

You can view the audit logs once they are configured and forwarded to the specified third-party tool. Here's a sample audit log from a log group configured in Amazon CloudWatch:

Last modified: February 14, 2025
