Monitor Your Kubernetes Cluster

Overview

SingleStore’s native monitoring solution is designed to capture and reveal SingleStore cluster events over time. By analyzing this event data, you can identify trends and, if necessary, take action to remediate issues.

Terminology

Throughout this guide, the cluster that is being monitored is referred to as the Source cluster, and the cluster that stores the monitoring data is referred to as the Metrics cluster. The database that stores monitoring data is referred to as the metrics database.

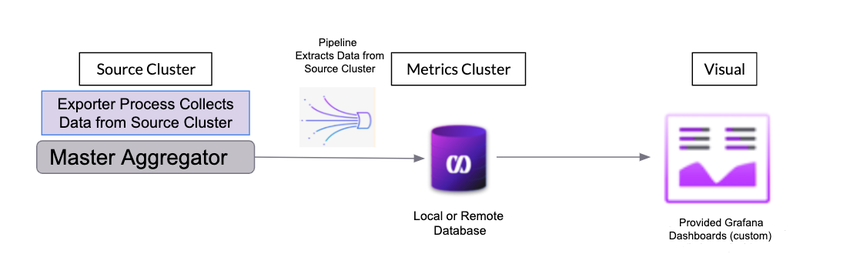

High-Level Architecture

In SingleStore’s native monitoring solution, the Metrics cluster utilizes a SingleStore pipeline to pull the data from the exporter process on the Source cluster and store it in a database named metrics. Note that this metrics database can either reside within the same cluster as the Source cluster, or within a dedicated cluster.

When these event data is then analyzed through the provided Grafana dashboards, trends can be identified and, if necessary, actions taken to remediate issues.

The provided Grafana dashboards include:

Prerequisites

• A SingleStore 7.3 or later cluster deployed via Kubernetes Operator to monitor (the Source cluster).

• Optional: A separate SingleStore 7.3 or later cluster deployed via a Kubernetes Operator used to collect monitoring data (the Metrics cluster).
