Choose an Encoding

SingleStore recommends using SeekableJson for any JSON columns on which analytics, search, or extraction will be done. That is, if you use functions like JSON_EXTRACT_<type>, the :: operators, or JSON_MATCH_ANY on the JSON column, use the SeekableJson encoding for good performance. SeekableJson is the default encoding.

SingleStore recommends using SeekableLZ4 (or SeekableStringRunLength) if you are concerned about memory usage and will not be searching on or extracting from the JSON column. Using the SeekableLZ4 (or SeekableStringRunLength) encoding may reduce memory usage but will hurt performance if you are extracting keys and values from the JSON.

SELECT column_name, segment_id, encoding, uncompressed_size, compressed_size
FROM information_schema.COLUMNAR_SEGMENTS
WHERE table_name = ‘<table_name>’ and column_name = '<column_name>';

SeekableJson

In the SeekableJson encoding, a schema is inferred from JSON keys and the data is split into columns by keypath (columnarized) and stored in an encoded Parquet-like format. The JSON data is stored as if you had created a schema with separate columns for every field. As a result, queries on JSON columns read only the parts of a JSON object that are relevant to a query and therefore have excellent performance.

The SeekableJson encoding format is inspired by Apache Parquet but does not produce a Parquet file.

SeekableJson is a seekable encoding. That is, during queries, the engine does not search entire segments, instead only a subset of rows in each segment is searched. This practice, called sub-segment seeking or row-level decoding, significantly improves performance.

When using the SeekableJson encoding for JSON columns in columnstore tables, the data is stored as follows:

• Top-level JSON properties are stored columnwise and use the same encodings as other data types (i.e., numbers, strings, and dates).

• Nested properties (inside sub-documents) are stored in sequential column format, using SingleStore's standard encoding.

• Arrays are pivoted and stored in column format. For example, a numeric array that is a property of an enclosing JSON document would be stored as a logical column, with multiple values in the column belonging to the same row. The array length information is kept to enable SingleStore to identify what values belong to what row.

The engine variable use_seekable_json controls if the default encoding for JSON columns is SeekableJson or JSONParquet. When use_seekable_json is set to ON, the default encoding for JSON columns is SeekableJson.

Check if use_seekable_json is enabled:

SELECT @@use_seekable_json;

+---------------------+
| @@use_seekable_json |
+---------------------+
|                   1 |
+---------------------+

SeekableLZ4 and SeekableStringRunLength

JSON columns may also be encoded with the seekable string encodings SeekableLZ4 and SeekableStringRunLength.

These encodings store the JSON as a string. Search or extraction on columns stored with these encoding decodes and parses the entire JSON value. Using these encodings may reduce memory usage and improve ingestion time, but they may significantly reduce performance for search and extraction on the JSON column, for example, when extracting keys and values from JSON data.

SingleStore recommends using SeekableLZ4 and SeekableStringRunLength only for columns on which JSON values are extracted as a whole.

Encoding String Data in Columnstore Tables  provides a general description of encoding schemes and encoding scheme selection for string (including JSON) columns. String encoding schemes are per-segment and are automatically selected with the goal of maximizing storage savings and lowering query latency.

To specify a string encoding for a JSON column, use a collation specification as follows:

CREATE TABLE json_table (json_lz4_col JSON COLLATE utf8_bin OPTION 'SeekableLZ4');

CREATE TABLE json_table (json_rle_col JSON COLLATE utf8_bin OPTION 'SeekableStringRunLength');

JSON Parquet

Like SeekableJson, the JSONParquet format is columnarized and inspired by the Apache Parquet format but does not produce a Parquet file.

SingleStore recommends that you use SeekableJson instead of JSONParquet, as SeekableJson is more performant.

JSONParquet is a precursor to SeekableJson and is not a seekable format, meaning that entire segments must be extracted and decoded for them to be processed.

Apply SeekableJson Encoding to Existing Data

To change the encoding of a JSON column from ParquetJSON to SeekableJson encoding, use the following options.

SELECT column_name, segment_id, encoding, uncompressed_size, compressed_size
FROM information_schema.COLUMNAR_SEGMENTS
WHERE table_name = '<table_name>' and column_name = '<column_name>';

Columnstore JSON Internals

This section provides details on the SeekableJson encoding.

A Parquet schema has a JSON-like syntax and a nested structure. The schema consists of a group of fields called a message. Each field has three attributes: repetition, type, and name. The type attribute is either a group or a primitive (e.g., int, float, boolean, or string). The repetition attribute can only be one of the following:

• Required: exactly one occurrence

• Optional: 0 or 1 occurrence

• Repeated: 0 or more occurrences

The infer schema process works as follows:

1. The schema loops through the list of JSON objects.

   1. The present keypaths are merged into a schema tree object.

   2. If there is a type conflict, the node in the schema tree is marked as un-inferable.

   3. If any node in the schema tree contains more children than indicated in the json_document_max_children engine variable, the node is marked as un-inferable.

   4. If a node has a greater number of children than indicated in the engine variable json_document_sparse_children_check_threshold and the average occurrence of all children related to the parent is less than 1/ as indicated in the engine variable json_document_sparse_children_check_ratio, the node will be marked as un-inferable.

2. Once the schema tree object is constructed, analyze the schema tree and prune the tree until the number of key paths (distinct root to leaf paths) is less than the setting for the engine variable json_document_max_leaves. Also, prune any node where the average occurrence of all the children in relation to the number of rows is less than 1/ as indicated in the engine variable json_document_absolute_sparse_key_check_ratio.

The examples will use the engine variables settings and the JSON object table shown below:

• json_document_max_children = 4

• json_document_sparse_children_threshold = 3

• json_document_sparse_children_ratio = 2

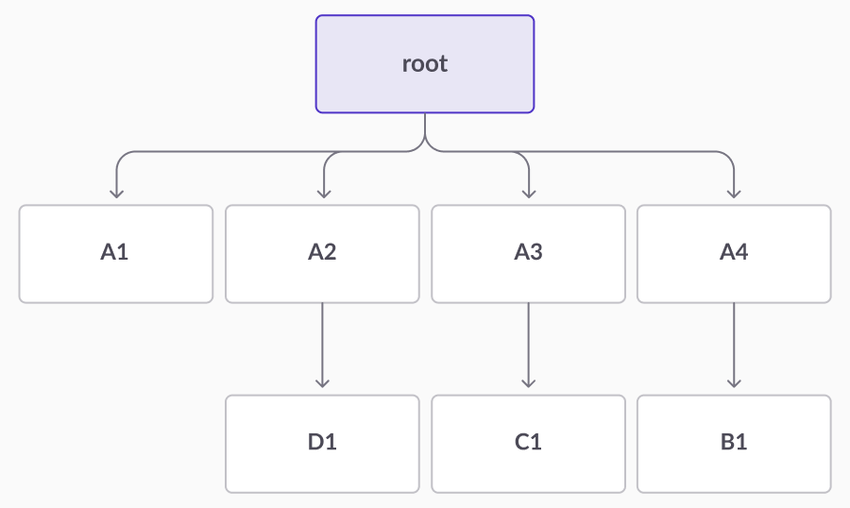

The first pass at merging the keypaths will yield:

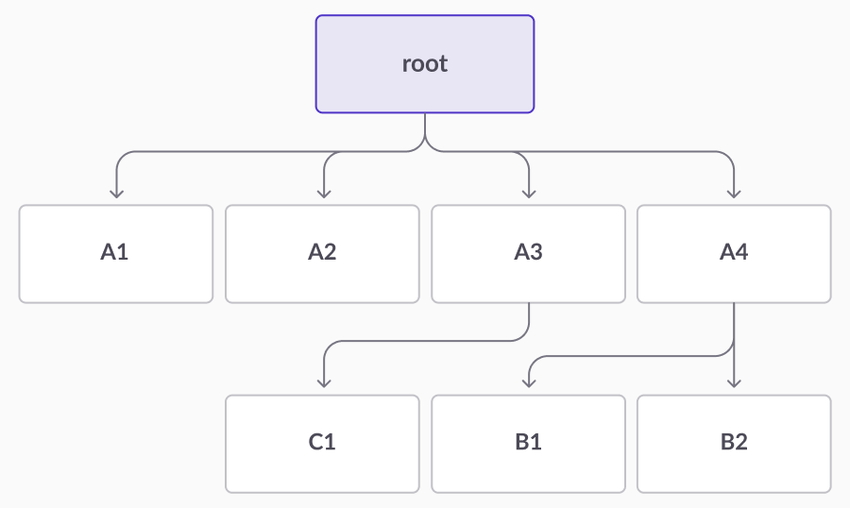

The second pass at merging the keypaths contains a type mismatch on a2. The results would be:

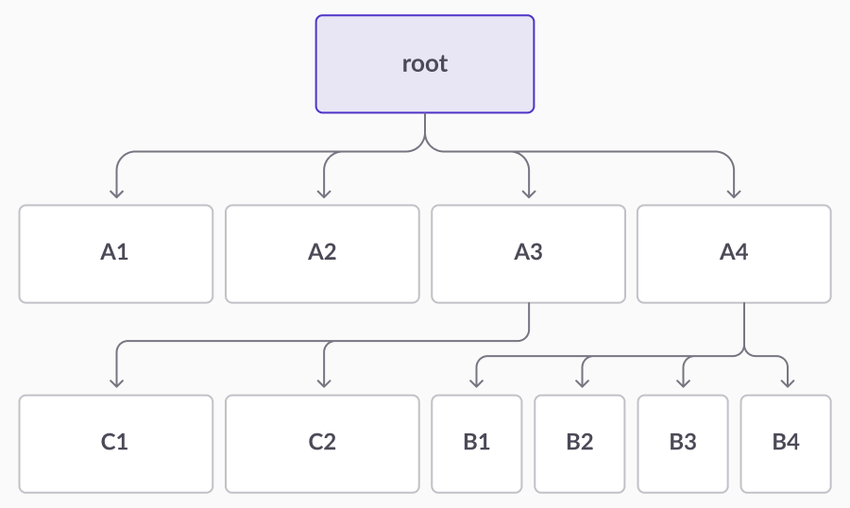

The results of the third and fourth passes at merging yield:

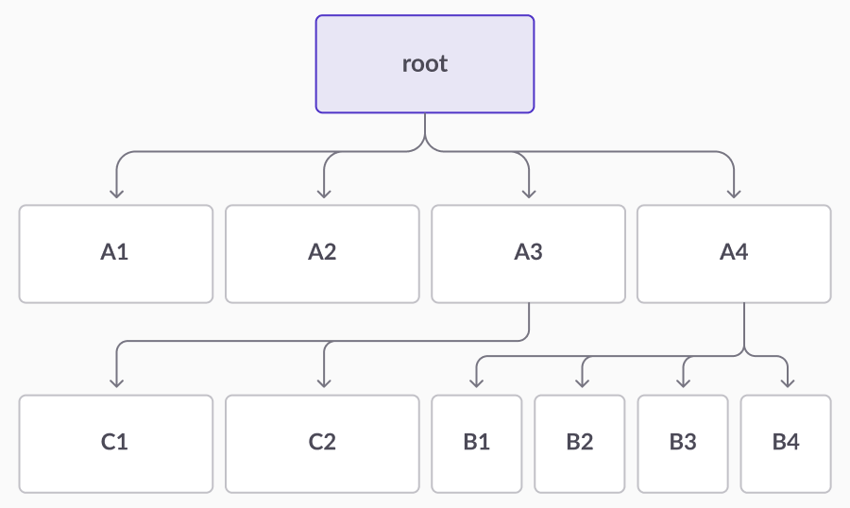

In the final merge, the number of children for a4 exceeds the limit (4) set for json_document_max_children so it is marked as un-inferable. The number of children for a3 exceeds the limit (3) set for json_document_sparse_children_threshold. The average occurrences of children of a3 (1) relative to the number of occurrences of a3 (3) is calculated as ⅓ < ½, so a3 would also be un-inferable.

After the merging process, the schema tree with leaves are the inferred columns (also may be referred to as leaves, leaf columns, leaf paths, or key paths).

The keypaths will be  a1, a2, a3, a4.
