Augmenting Your Data Warehouse to Accelerate BI
On this page
Welcome to SingleStore Helios! We put together a guide to help you augment your data warehouse by migrating some of your BI workloads to SingleStore.
-
Preparing your data from your existing data warehouse
-
Interacting with SingleStore
-
Designing your SingleStore tables to accelerate your dashboards
-
Incorporating streaming data with SingleStore
-
Optimizing your queries for your dashboards
-
Connecting your dashboard to SingleStore
Tutorial Outline
This tutorial is divided into the following sections:
Getting Started
-
Benefits of leveraging SingleStore Helios for your BI dashboard
-
Why users leverage SingleStore to augment their existing data warehouse technologies
-
-
What to consider when bringing your data from:
-
Snowflake, Redshift, BigQuery, Synapse
-
AWS S3, Google CS, Azure, Kafka
-
-
What to consider when designing your database coming from:
-
MySQL, MariaDB, Postgres
-
Sample Architecture
Preparing Your Data for SingleStore
Database Administration
-
Cloud Portal
-
Drivers
-
MySQL Workbench
-
MySQL Command Line
Designing Your Tables
-
Data types
-
Designing a schema for an application
-
Sharding for application workloads
-
Sort keys for application workloads
-
Reference Tables
-
Data Ingest
-
How this may be different from ingesting directly to the data warehouse
-
Using SingleStore Pipelines
-
Using INSERT Statements
Testing Your Queries and Performance
-
Run queries
-
Visual Explain
-
Concurrency test your queries using
dbench
based on app expectations
Writing Back to Your Application
Connecting Your BI Tools
-
Connectivity samples for Tableau, Power BI, Looker
Getting Started
We are excited for you to get started accelerating your BI dashboards by augmenting your cloud data warehouse with SingleStore Helios (SSMS).
Some terminology used in this guide:
-
App/Application: Web- or mobile-based, customer or internal facing application.
-
Dashboard: Visual analytics displayed either through commercial business intelligence tools or custom-built solutions.
-
Object storage: Cloud-based data repository.
Data warehouse users often find improved query latency and concurrency support using SingleStore Helios as the data store directly fueling their dashboards, while retaining their data warehouse for long term storage.
Let’s get started by discussing some of the basic things to consider when bringing your data over from one of these data warehouses.
Things to Consider
For users starting with a database already hosted in a cloud provider like AWS, Azure, or GCP, you may already have your data sitting in object storage (if not, we walk through how to do this later).
Now, of course, every database is different.
Things to know, regardless of your current platform:
-
SingleStore Helios can be deployed in any of the three major clouds, in any region – so you don’t have to worry about moving regions.
-
Cloud Enterprise Data Warehouses (EDWs) typically leverage ANSI SQL, and SingleStore does too.
However, SingleStore leverages MySQL syntax so there may be some modifications required. SingleStore is also ACID compliant.
Things to know for specific databases:
Snowflake
Users often use SingleStore Helios in conjunction with Snowflake to achieve improve concurrency and ingest SLAs at a lower overall TCO.
Redshift
-
Users often use SingleStore Helios in conjunction with Redshift to improve overall query latency for workloads with transactions and analytics.
-
Many users come to SingleStore Helios after they have reached the Redshift column limitation as well.
-
Redshift’s "leader nodes" and "compute nodes" correspond to SingleStore Helios’s aggregator nodes and leaf nodes.
Aggregators handle client communication and query orchestration, and leaf nodes manage data and compute power. You don’t need to know too much here given that this is a managed service, but you’ll see the node types denoted within the "Nodes" section of the Cloud Portal.
BigQuery
Users typically find SingleStore Helios to be faster in overall ingest speeds and query latency with concurrency, but may find BigQuery simpler to implement with the overall GCP stack.
Azure Synapse
Synapse’s "control nodes" and "compute nodes" correspond to SingleStore Helios’s "aggregator nodes" and "leaf nodes".
Sample Architectures
Many of our users experience slow dashboard response times when overwhelming their data warehouses with various different speeds and sizes of data.
![](https://images.contentstack.io/v3/assets/bltac01ee6daa3a1e14/bltcb0d104d84917592/66db60b5cdb9d718398111e4/16083b57a2711d-EyZ33Y.png?width=850&disable=upscale&auto=webp)

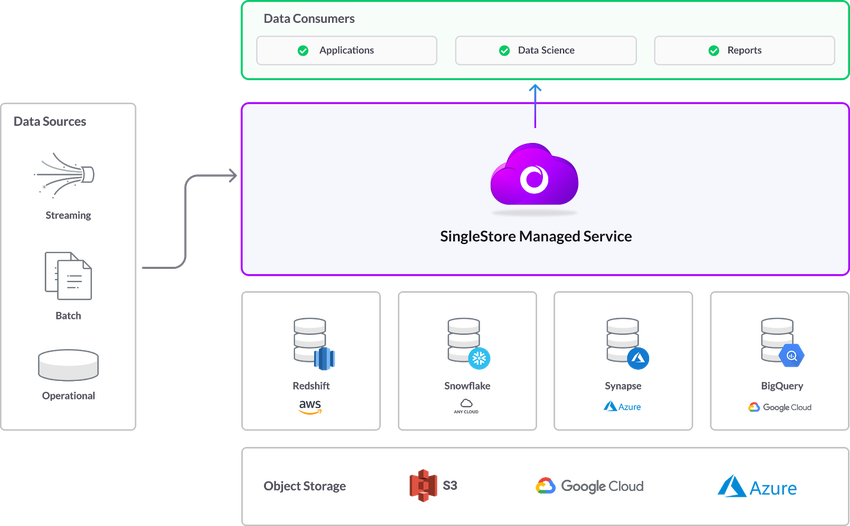

Keeping those data warehouses in place and augmenting them with a high performance database built for fast ingest and concurrency helps our users not only save money, but deliver a stellar user experience.
![](https://images.contentstack.io/v3/assets/bltac01ee6daa3a1e14/blt96535c2572f369a9/66db60702f4f855f40c47353/16083b57a2ee4f-dwIp76.png?width=850&disable=upscale&auto=webp)
Preparing Your Data for SingleStore
SingleStore has simple, powerful methods of bringing data in from object storage.
Is your data already in cloud storage? Feel free to move on to the next section.
Existing Managed Cloud Databases:
-
Synapse to Blob Storage
For other databases that you’re looking to migrate, you can still export that data to CSV, JSON, etc.SELECT .
from your existing database.
If you are importing data from MySQL or MariaDB, you can perform a simple mysqldump
as listed in Transition from MySQL to SingleStore Helios.
Don’t want to do a bulk import? That’s fine too! After we discuss schema design, we’ll walk you through connecting directly from your application and writing data.
Database Administration
Now that we have identified our data source, let’s talk a bit about how we’ll interact with SingleStore.
When you signed up in Cloud Portal, you got access to our SQL Editor and Visual Explain tools.
Ensure that you have the appropriate client drivers prior to using other database administration tools.
MySQL Workbench
If you’re coming from MariaDB or MySQL, you may already be comfortable with Workbench.
Note: When defining your connection, you will need to go to the Advanced tab and insert defaultAuth=mysql_
in the "Others:" field to ensure proper authentication.
MySQL Command Line
Within your Cloud Portal, your workspace details will include a MySQL Command section.
Note: When defining your connection, you will need to enter this at the MySQL command line: --defaultAuth=mysql_
to ensure proper authentication.
Designing Your Tables
At this point, you should be using the SQL Editor or some other MySQL client to work with your cloud database.
By default within SingleStore Helios, database tables are created using our Universal Storage format (i.
Data Types
If you’re familiar with relational databases, you may not need too much guidance on data types.
In addition to data types traditionally supported in relational databases, SingleStore also supports JSON and geospatial data types.
Shard Key
This key determines how data is distributed across the database workspace, and is critical to ensure that your data isn’t skewed.
-
Snowflake users may be familiar with micro-partitioning and workspaceing to distribute data.
If you’ve perhaps found these difficult to maintain on ever-changing data, you are in the right place. -
Redshift users would be familiar with the various mechanisms listed here for data distribution across a workspace.
-
BigQuery users will be familiar with the concept of sharding from
partitioned tables
. -
Synapse users will be familiar with the concept of sharding, though SingleStore Helios gives you a bit more flexibility here on data distribution.
So how do I pick a shard key best for my application workload?
-
If you have a primary key, make sure the shard key is a subset of it (because cardinality matters!).
-
If your BI queries include frequent joins or filters on a specific set of columns, make sure the shard key is a subset of those (in both tables, for joins).
-
For highly concurrent workloads, make sure your shard key allows your queries to be single partition (i.
e. , join or filter columns within shard key).
In this example, we use user_
as our shard key, which works nicely given its high cardinality as a part of this dataset.user_
will be maintained together, which will improve query response time.
CREATE TABLE clicks (click_id BIGINT AUTO_INCREMENT,user_id INT,page_id INT,ts TIMESTAMP,SHARD KEY (user_id),SORT KEY (click_id, user_id));
Columnstore Key
In addition to identifying your shard key, it’s important to tell SingleStore how you would like to sort your data within each data segment.
If you’re familiar with BigQuery, you may note that this is similar to the concept of workspaceing.
So how do I pick a columnstore key best for my BI workload?
-
BI dashboards often require lots of filtering.
If you have common filter columns, make sure those are in the columnstore key. -
If you’re inserting in order by some column, it’s best to put that column first in the columnstore key.
-
Lower cardinality columns should be first in the columnstore key.
In this example, we use price
as our sort key, so items are sorted in order of that column when queried.
CREATE TABLE products (ProductId INT,Color VARCHAR(10),Price INT,Qty INT,SORT KEY (Price),SHARD KEY (ProductId));
Reference Tables
If you have small, infrequently changing table(s) that are required for joins, consider making them Reference Tables.
-
Reference tables are a convenient way to recreate dimension tables that you may use in MySQL, MariaDB, or PostgreSQL.
-
Reference tables are replicated to each leaf in the workspace ensuring data does not need to go across the network between partitions to join data.
-
Reference table commands need to be run from the endpoint listed in the Cloud Portal.
Data Ingest
Now for the fun part, ingesting data! This is where things may look a bit different to you compared to other databases, because SingleStore has this unique ingest capability called Pipelines that supports high-frequency, parallel ingest of data from sources like S3, Azure Blob, GCS, Kafka, etc.
Previously, we discussed how to bring your data from Snowflake, BigQuery, Redshift, etc.
SingleStore Pipelines
To use a Pipeline to import data into SingleStore, write a CREATE PIPELINE statement using our SQL Editor or a MySQL client.
A few things to consider:
-
Make sure that your security settings in your blob storage will allow for access from SingleStore.
For example, AWS S3 security settings can be found here. -
Make sure your buckets are not public, but you should be able to obtain an access and secret key using the AWS doc here.
-
You can use wildcard notation when identifying your files from within the bucket.
Here’s an example of a CREATE PIPELINE statement:
CREATE PIPELINE libraryAS LOAD DATA S3 'my-bucket-name'CONFIG '{"region": "us-west-1", "suffixes": ["csv"]}'CREDENTIALS '{"aws_access_key_id": "your_access_key_id", "aws_secret_access_key": "your_secret_access_key"}'INTO TABLE `classic_books`FIELDS TERMINATED BY ',';
GCP Documentation:
Azure Documentation:
Cloud Data Pipelines
Perhaps you’re interested in hooking up SingleStore directly to your cloud data pipelines.
AWS Glue
Check out our native integration with AWS Glue.
Google Cloud Dataflow
Users can easily integrate SingleStore into their Dataflow pipelines using the JDBCIO.
INSERT Statements
Perhaps you already have an application that is writing to your existing database, and you simply want to redirect the writes from that application to SingleStore.
Testing Your Queries
Here are some helpful hints for testing your queries.
Running Queries
Hopefully at this point you have your data in SingleStore.
Visual Explain
One great feature of SingleStore Helios is Visual Explain.
Once you identify a bottleneck, you should be able to make changes either to your schema or to your query itself in order to improve speed.
You can manually (non-visually) run EXPLAIN
or PROFILE
from any client; see the links above for details on the commands.
Benchmarking
At SingleStore, we've developed an easy-to-use tool for benchmarking called dbbench
.
Once you've installed the packages to your host machine, you can walk through this tutorial.svc-xxx-dml.
).3306
, as listed.
Writing Back to Your Application
In the Sample Architectures section, we shared some general practices that our users have employed when augmenting their data warehouse environment with SingleStore.
The best way to write to a cloud data warehouse from SingleStore is again via object storage (i.SELECT… INTO…
in order to take the output of a given query and drop it into object storage.
Connecting Your BI Tools
You’ve likely already selected an analytics partner, so we won’t go too deep into the similarities and differences between them.
In these examples, you’ll be using your endpoint here provided in the Cloud Portal, along with the credentials you used when spinning up your workspace.Firewall
section of the Cloud Portal allows communication between your BI and SingleStore Helios environments.
Tableau
Documentation: Connect with Tableau Desktop
Notes: Tableau has a limitation of auto updates at most one per hour, so you may not see your real-time data updating within your dashboard by the second.
Power BI
Documentation: Connect with Power BI
Notes: Make sure you are using DirectQuery mode to truly harness the power of SingleStore and all of the data you have stored.
Looker
Documentation: Connect with Looker
Notes: Looker allows dashboards to update up to the second, so be sure to watch the video in (b) to see how to configure that.
Additional Analytics and BI Tools
