Connect with Haystack

Install singlestore-haystack

The singlestore-haystack library can be installed using the standard Python package installation process:

pip install singlestore-haystack

Data Storage Model

SingleStoreDocumentStore stores documents as rows in a SingleStore table. Vector embeddings are stored in a VECTOR type column in the table.

SingleStoreDocumentStore automatically creates the required vector and full-text indexes if they do not already exist. When using SingleStoreEmbeddingRetriever, documents must be embedded before they are written to the database. Use a Haystack embedder to generate these embeddings. For example, use the SentenceTransformersDocumentEmbedder in an indexing pipeline to generate document embeddings before storing them in SingleStore.

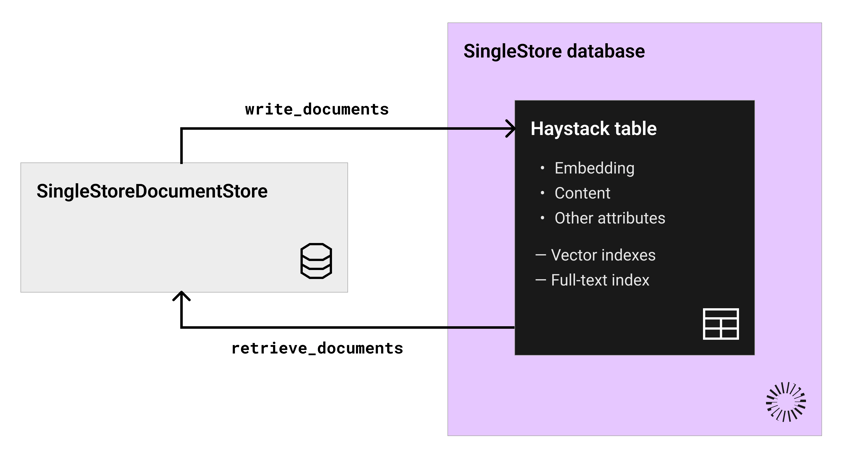

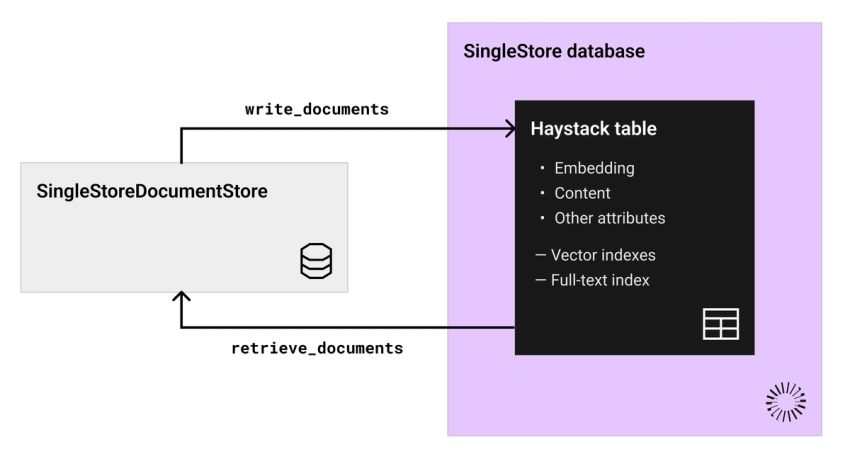

The following is a visual representation:

In this infographic:

• Haystack table is a SingleStore table used by SingleStoreDocumentStore to persist Haystack Document objects as rows.

• embedding is a property of the document, which is stored as a vector of type VECTOR(n, F32).

• content is a property of the document.

• vector indexes are SingleStore vector indexes created on the embedding column to enable efficient search for dense retrieval.

• fulltext index is a SingleStore full-text index created on the content column to support BM25-based sparse retrieval.

• write_documents represents the insert operation where SingleStoreDocumentStore stores documents in the table.

• retrieve_documents represents the retrieval operations run by retrievers, such as SingleStoreEmbeddingRetriever (for vector search) and SingleStoreBM25Retriever (for full-text search).

For example, consider the following code:

from haystack import Document
from haystack_integrations.document_stores.singlestore_haystack import SingleStoreDocumentStore

# Initialize the document store (uses S2_CONN_STR by default)
document_store = SingleStoreDocumentStore(
    database_name="haystack_db",
    table_name="haystack_documents",
    embedding_dimension=384,
)

# Each Document becomes a row in the SingleStore table
documents = [
    Document(
        content="SingleStore is a distributed SQL database built to power intelligent applications.",
        embedding=[0.1] * 384,  # VECTOR(384, F32) column
        meta={
            "num_of_years": 3,   # stored as JSON/metadata column
        },
    )
]

# Insert documents into SingleStore
document_store.write_documents(documents)

Supported Components

This library implements the DocumentStore protocol methods; import the SingleStoreDocumentStore implementation as follows:

from haystack_integrations.document_stores.singlestore_haystack import SingleStoreDocumentStore

In addition to SingleStoreDocumentStore, the singlestore-haystack library includes the following Haystack Retriever components that can be used in a pipeline:

• SingleStoreEmbeddingRetriever: Queries SingleStore vector index and finds semantically related documents. This component uses SingleStoreDocumentStore to perform vector similarity search over stored vector embeddings.

  Python

  Copy

  from haystack_integrations.components.retrievers.singlestore_haystack import SingleStoreEmbeddingRetriever

• SingleStoreBM25Retriever: Performs sparse retrieval using the BM25 ranking algorithm. It leverages SingleStore full-text search (FTS) capabilities to retrieve documents based on keyword relevance instead of vector similarity (embeddings). This component uses SingleStoreDocumentStore to execute BM25 queries. SingleStore recommends using this component for keyword-based and hybrid search scenarios.

  Python

  Copy

  from haystack_integrations.components.retrievers.singlestore_haystack import SingleStoreBM25Retriever

  You can specify either of the following scoring functions:

  • BM25

  • BM25_GLOBAL

  Refer to BM25 for more information. For example:

  Python

  Copy

  retriever = SingleStoreBM25Retriever(document_store=document_store)
  results = retriever.run(
      query="database",
      top_k=2,
      bm25_function="BM25",
  )["documents"]

Use SingleStore as a Document Store

export S2_CONN_STR="singlestoredb://<username>:<password>@<hostname>:<port>/[<database>]"

document_store = SingleStoreDocumentStore(
    host="<hostname>",
    port=<port>,
    username="<username>",
    password="<password>",
    database_name="<database>",
    table_name="<table>"  # Name of SingleStore the table used to store Documents
)

from haystack_integrations.document_stores.singlestore_haystack import SingleStoreDocumentStore

document_store = SingleStoreDocumentStore(
    database_name="haystack_db",
    table_name="haystack_documents",
    embedding_dimension=768,

    # Enable FULLTEXT index for keyword/BM25 search
    use_fulltext_index=True,
    fulltext_index_options={
        "analyzer": "standard",
    },

    # Enable vector index optimized for dot product similarity
    use_dot_product_vector_index=True,
    dot_product_vector_index_options={
        "nlist": 128,
    },

    # Optionally disable Euclidean-distance index if not needed
    use_euclidian_distance_vector_index=False,
)

from haystack import Document
from haystack.components.embedders import SentenceTransformersDocumentEmbedder
from haystack_integrations.document_stores.singlestore_haystack import SingleStoreDocumentStore

# Initialize the document store
document_store = SingleStoreDocumentStore(
    database_name="haystack_db",        # SingleStore database
    table_name="haystack_documents",    # SingleStore table for Documents
    embedding_dimension=384,            # Dimension of embeddings
)

# Create documents
documents = [
    Document(content="SingleStore is a distributed SQL database built to power intelligent applications.")
]

# Create the document embedder
document_embedder = SentenceTransformersDocumentEmbedder(
    model="sentence-transformers/all-MiniLM-L6-v2"
)

# Download the model and prepare it (first run only)
document_embedder.warm_up()

# Generate embeddings
result = document_embedder.run(documents)
documents_with_embeddings = result["documents"]

# Write documents (with embeddings) to SingleStore
document_store.write_documents(documents_with_embeddings)

from haystack import Document, Pipeline
from haystack.components.embedders import SentenceTransformersDocumentEmbedder
from haystack.components.writers import DocumentWriter
from haystack_integrations.document_stores.singlestore_haystack import SingleStoreDocumentStore

# Input documents
documents = [
    Document(content="SingleStore is a distributed SQL database built to power intelligent applications."),
    Document(content="SingleStore is delivered as a SaaS data platform (SingleStore Helios) and is available in AWS, Azure, and GCP."),
]

# Initialize the document store
document_store = SingleStoreDocumentStore(
    table_name="haystack_documents",
    embedding_dimension=384,
    recreate_table=True,   # Recreate the table if it already exists
)

# Components
embedder = SentenceTransformersDocumentEmbedder(
    model="sentence-transformers/all-MiniLM-L6-v2"
)
writer = DocumentWriter(document_store=document_store)

# Build the pipeline
pipeline = Pipeline()
pipeline.add_component(instance=embedder, name="embedder")
pipeline.add_component(instance=writer, name="writer")
pipeline.connect("embedder", "writer")

# Run the indexing pipeline
result = pipeline.run({"embedder": {"documents": documents}})
print(result)  # {'writer': {'documents_written': 2}}

`{'writer': {'documents_written': 2}}`

from typing import List

from haystack import Document, Pipeline
from haystack.components.embedders import SentenceTransformersDocumentEmbedder, SentenceTransformersTextEmbedder

from haystack_integrations.components.retrievers.singlestore_haystack import SingleStoreEmbeddingRetriever
from haystack_integrations.document_stores.singlestore_haystack import SingleStoreDocumentStore

# Initialize the document store
document_store = SingleStoreDocumentStore(
    database_name="haystack_db",  # The name of the database in SingleStore
    table_name="haystack_documents",  # The name of the table to store Documents
    embedding_dimension=384,  # The dimension of the embeddings being stored
    recreate_table=True,
)

# Sample documents with metadata
documents = [
    Document(content="My name is Morgan and I live in Paris.", meta={"num_of_years": 3}),
    Document(content="I am Susan and I live in Berlin.", meta={"num_of_years": 7}),
]

# The same model is used for both query and Document embeddings
model_name = "sentence-transformers/all-MiniLM-L6-v2"

# Embed and write documents
document_embedder = SentenceTransformersDocumentEmbedder(model=model_name)
document_embedder.warm_up()
documents_with_embeddings = document_embedder.run(documents)

document_store.write_documents(documents_with_embeddings.get("documents"))

print("Number of documents written: ", document_store.count_documents())

# Build the retrieval pipeline
pipeline = Pipeline()
pipeline.add_component("text_embedder", SentenceTransformersTextEmbedder(model=model_name))
pipeline.add_component("retriever", SingleStoreEmbeddingRetriever(document_store=document_store))
pipeline.connect("text_embedder.embedding", "retriever.query_embedding")

# Run a query with metadata filtering
result = pipeline.run(
    data={
        "text_embedder": {"text": "What cities do people live in?"},
        "retriever": {
            "top_k": 5,
            "filters": {"field": "meta.num_of_years", "operator": "==", "value": 3},
        },
    }
)

documents: List[Document] = result["retriever"]["documents"]
print(documents)

[Document(id=4014455c3be5d88151ba12d734a16754d7af75c691dfc3a5f364f81772471bd2, content: 'My name is Morgan and I live in Paris.', meta: {'num_of_years': 3}, score: 0.339349627494812, embedding: vector of size 384)]

References

• Vector Indexing

• Vector Type

• Working with Vector Data

• Working with Full-Text Search

• DOT_PRODUCT

• EUCLIDEAN_DISTANCE
