Management Statistics Reference

As detailed in Management View Reference, each row of a given view profiles a particular set of tasks over a particular interval of time. The following generic column descriptions should be understood as the sum of the described statistic over all tasks in the set defined for a given view, as measured during the defined interval.

Extended Statistics

The statistics listed in the table below are present in the following management views found in the information_schema database:

mv_activities_extended
mv_activities_extended_cumulative
mv_finished_tasks
mv_tasks

Column name	Description
`elapsed_time_ms`	Wall clock milliseconds elapsed during execution. This is likely to exceed the observed latency of a set of tasks because the tasks are likely to have executed concurrently.
`cpu_time_ms`	Milliseconds spent running on all the CPUs across the workspace.
`cpu_wait_time_ms`	Milliseconds spent waiting for a CPU to become available. A non-zero value indicates that there were more concurrent tasks in the workload than there were CPUs on which to run them. If this value is a significant fraction of elapsed time, the workload is likely issuing its queries faster than the hardware can handle. Investigate the tasks with the highest `cpu_time_ms` and optimize the relevant queries, reduce your workload, or provision more CPUs for your workspace. Note that this column is also an Advanced Statistics, and requires that the global variable `read_advanced_counters` is set to `ON`.
`disk_logical_read_b`	Bytes read from the filesystem.
`disk_logical_write_b`	Bytes written to the filesystem.
`disk_physical_read_b`	Bytes actually read from physical disk. This may be higher or lower than the logical number due to hardware and operating system artifacts and optimizations. Note that this column is also an Advanced Statistics, and requires that the global variable `read_advanced_counters` is set to `ON`.
`disk_physical_write_b`	Bytes actually written to physical disk. This may be higher or lower than the logical number due to hardware and operating system artifacts and optimizations. Note that this column is also an Advanced Statistics, and requires that the global variable `read_advanced_counters` is set to `ON`.
`disk_time_ms`	Milliseconds spent waiting for physical disk I/O to complete. If this value is high, it may indicate excessive time to commit transactions to storage. You may need hardware which supports a faster write rate, or you may need to investigate whether other processes are issuing too much I/O and introducing unwanted variability. Check which other activities are using `disk_physical_read_b` or `disk_physical_write_b`. Note that this column is also an Advanced Statistics, and requires that the global variable `read_advanced_counters` is set to `ON`.
`lock_row_time_ms`	Milliseconds spent waiting on table row locks.
`lock_time_ms`	Milliseconds spent waiting on locks and condition variables, excluding row locks. This isn’t solely wait time due to contention on data structures because it also includes some time spent waiting for events in general.
`log_flush_time_ms`	Milliseconds spent waiting for transaction log records to be flushed to disk. If this value is nonzero, it is usually indicative of disk issues. See `disk_time_ms`.
`log_buffer_time_ms`	Milliseconds spent waiting for space in the transaction log buffer. If this value is nonzero, it is usually indicative of disk issues. See `disk_time_ms`.
`log_buffer_b`	Bytes written to the transaction log buffer. These will eventually be flushed to disk by log flusher system tasks, whose `disk_logical_write_b` should include this quantity.
`memory_bs`	Byte-seconds of memory used.
`memory_major_faults`	Number of page faults which required disk I/O to resolve. Note that this column is also an Advanced Statistics, and requires that the global variable `read_advanced_counters` is set to `ON`.
`network_logical_recv_b`	Bytes received from a socket.
`network_logical_send_b`	Bytes written to a socket.
`network_time_ms`	Milliseconds spent waiting for sockets to be ready to send or receive data. This may indicate that leaves are slow to respond to a query, or that a distributed join involves a large data transfer. If this counter has a noticeable delay, check what other activities are consuming `network_logical_recv_b` and `network_logical_send_b`.

Simplified Statistics

The statistics listed in the table below are present in the following management views in the information_schema database:

mv_activities
mv_activities_cumulative

Column name	Description
`elapsed_time_ms`	Wall clock milliseconds elapsed during execution.
`cpu_time_ms`	Milliseconds spent running on all the CPUs across the workspace.
`cpu_wait_time_ms`	Milliseconds spent waiting for a CPU to become available. A non-zero value indicates that there were more concurrent tasks in the workload than there were CPUs on which to run them. If this value is a significant fraction of elapsed time, the workload is likely issuing its queries faster than the hardware can handle. Investigate the tasks with the highest `cpu_time_ms` and optimize the relevant queries, reduce your workload, or provision more CPUs for your workspace. Note that this column is also an Advanced Statistics, and requires that the global variable `read_advanced_counters` is set to `ON`.
`disk_time_ms`	Milliseconds spent waiting for physical disk I/O to complete. If this value is high, it may indicate excessive time to commit transactions to storage. You may need hardware which supports a faster write rate, or you may need to investigate whether other processes are issuing too much I/O and introducing unwanted variability. Check which other activities are using `disk_physical_read_b` or `disk_physical_write_b`. Note that this column is also an Advanced Statistics, and requires that the global variable `read_advanced_counters` is set to `ON`.
`disk_b`	Number of bytes that SingleStore Helios read and wrote to the filesystem or the in memory transaction log.
`lock_time_ms`	Milliseconds spent waiting on locks and condition variables, excluding row locks. This isn’t solely wait time due to contention on data structures because it also includes some time spent waiting for events in general.
`memory_bs`	Byte-seconds of memory used.
`network_b`	Number of bytes SingleStore Helios sent and received to sockets.
`network_time_ms`	Milliseconds spent waiting for sockets to be ready to send or receive data. This may indicate that leaves are slow to respond to a query, or that a distributed join involves a large data transfer. If this counter has a noticeable delay, check what other activities are consuming `network_logical_recv_b` and `network_logical_send_b`.

Note

For simple statistics, elapsed_time_ms is aggregated over aggregators only, whereas all other statistics show total usage over both aggregators and leaves. For this reason, it is not meaningful to compare elapsed_time_ms to cpu_time_ms.

Statistics Availability

Some workload profiling statistic will be unavailable at certain times, on certain platforms. See Advanced Statistics for more information.

Advanced Statistics

The following advanced statistics require operating system support to collect:

cpu_wait_time_ms
disk_time_ms
disk_physical_read_b
disk_physical_write_b
memory_major_faults

If SingleStore Helios failed to collect an advanced statistic, the corresponding column in workload profiling views will contain NULL values and warnings will be returned by queries against the views.

In particular, cpu_wait_time_ms requires a Linux kernel compiled with CONFIG_SCHEDSTAT enabled. This flag is enabled by default on all Ubuntu and Red Hat Linux installations, but is omitted from certain versions of Debian Linux.

Understanding memory_bs

When reporting memory usage by activities, we report a metric that represents the memory requirements of that activity. To understand, we need to look at a chart of memory used by a connection over time.

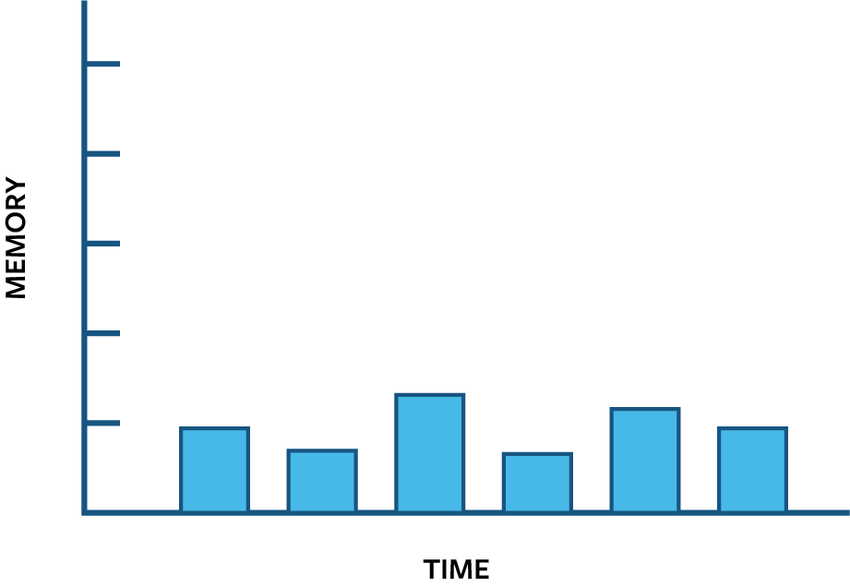

In this chart of memory usage over a time, the connection runs many small short lived queries. While each query is running, it uses a small amount of memory:

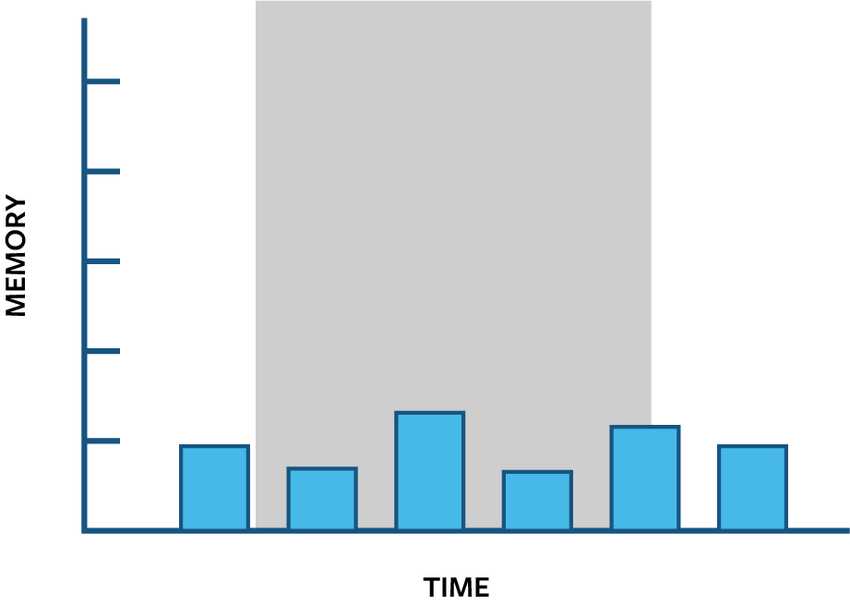

We want to report the memory used by these queries in an interval, for example during the grey interval:

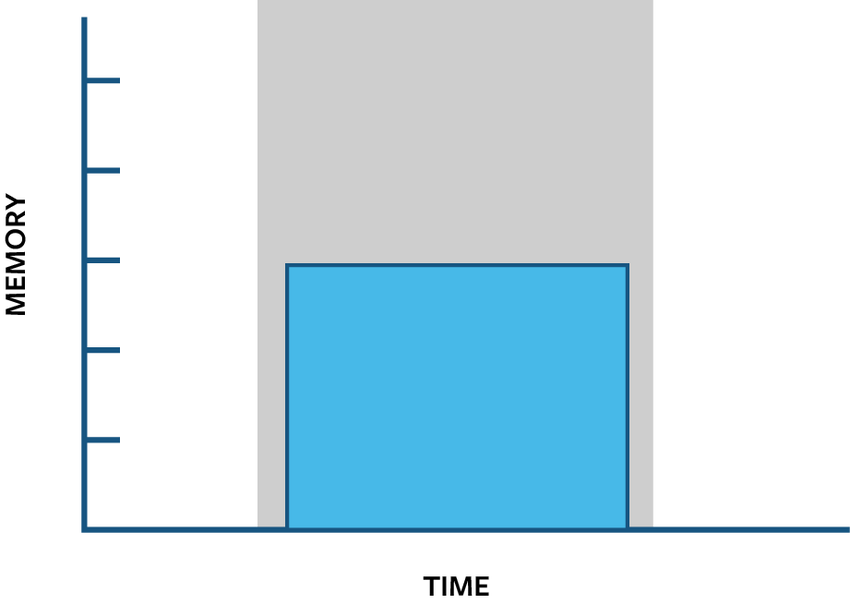

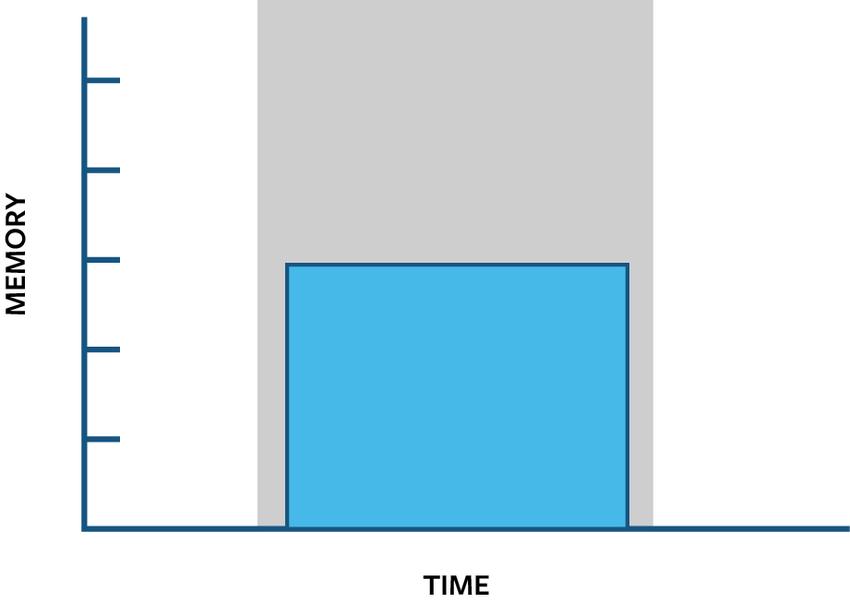

The following figure shows a different connection, with a single long running query that consumes a moderate amount of memory. During the grey interval, it reserves substantially more memory than the first connection of small short queries:

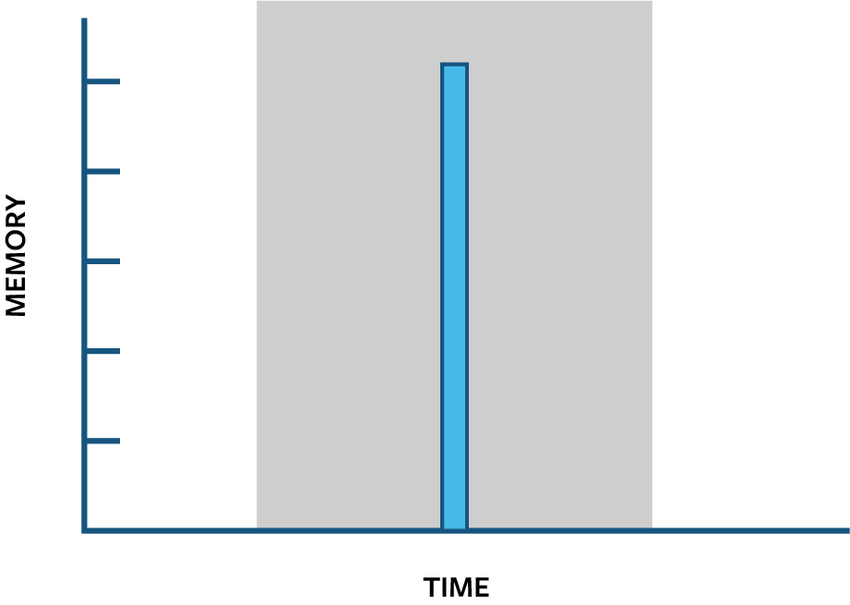

Here is a last connection, with a single expensive but short lived query that uses a large amount of memory. During the grey interval, it has a higher maximum amount of memory used; however, it is less costly to run:

The last query is substantially less expensive than the previous query because it released its memory quickly. If the height of the chart is the maximum amount of memory available, the amount of the grey rectangle covered up by our blue queries represents how expensive the queries are. This area is measured in byte seconds and is calculated by multiplying the maximum memory used by a query by the elapsed time (i.e. the amount of time it held that memory and prevented other queries from using it).

Sample Query for memory_bs

To find the average memory used by a query, execute a query similar to the following:

SQL

memsql> use information_schema;
memsql> select 1000*memory_bs/elapsed_time_ms as avg_memory_used_b,
activity_name from mv_activities;
+-------------------+------------------------------------------------------------------+
| avg_memory_used_b | activity_name                                                    |
+-------------------+------------------------------------------------------------------+
|            0.0000 | registrationRunner                                               |
|            0.0000 | ReplicaHandler_StreamFiles                                         |
|            0.0000 | ShardingPartition::WorkerThread                                  |
|        26192.8233 | ReadAndExecuteLoop                                               |
|            0.0000 | LogFlusherThreadFunc                                             |
|            0.0000 | SecondaryReplayThread::Run                                           |
|            0.0000 | LogFlusher                                                       |
|      1143400.0000 | Select_MV_ACTIVITIES_EXTENDED_CUMULATIVE__et_al_23409c29b9e1dd98 |                                        |
+-------------------+------------------------------------------------------------------+
