Query Performance Tools

Run ANALYZE

The ANALYZE command collects data statistics on a table to facilitate accurate query optimization. This is especially important for optimizing complex analytical queries. You should ANALYZE your tables after inserting, updating, or deleting large numbers of rows (30% of your table row count is a good rule of thumb). See the Statistics and Sampling topic for more information.

EXPLAIN

Returns detailed information on how the query is compiled. See EXPLAIN for more details.

PROFILE

Provides detailed resources usage metrics about a query. See PROFILE for more details.

Auto Profiling

Prior to the 8.1 release, PROFILE could only be utilized on a per-query basis. The command was appended to the beginning of the query to be profiled. Once the query finished executing, the SHOW PROFILE command was run to obtain the profile results. This profiling method is called an explicit profile since the PROFILE command is explicitly written with the query.

PROFILE <statement>;
SHOW PROFILE;

Now SingleStoreDB offers two automatic profiling modes (called "auto profiling" hereafter): FULL and LITE. Auto profiling and explicit profiling share the same query plans, but the difference between them is the level of statistics collected. Auto profiling is not on by default.

FULL auto profiling collects statistics for every run of the query with an existing query plan. Execution time and network time are not collected. The results provide row counts for each operation, memory usage, and network traffic. The row count information can be used to hint at where the overall execution is processing the most rows; thereby giving direction on how to troubleshoot or optimize a query.

FULL auto profiling may cause additional network latency between 1-5 milliseconds on mostly low latency queries. FULL auto profiling can cause a small variable overhead on the CPU. FULL auto profiling works best for queries where adding this latency won't degrade the performance of the overall workload; such as analytical queries that execute in the order of seconds not milliseconds.

LITE auto profiling collects statistics on the first run of a new query plan and when a query plan is loaded from disk to memory. There is no information collected on execution time, network time, memory usage, and network traffic. The results do provide row counts on each operation as with FULL auto profiling.

There is negligible memory overhead for high throughput and low latency queries for using the LITE auto profiling setting. LITE auto profiling works best on transaction processing workloads with mostly inserts and updates. However, memory overhead can increase proportionally to the in-memory plancache size.

The following code snippet shows how to turn on auto profiling and then how to turn on the FULL or LITE auto profiling type. First, you must turn on the enable_auto_profile engine variable. This requires the user to have SUPER permissions, but SUPER permissions are not required to set this engine variable at the session level:

SET GLOBAL enable_auto_profile = ON;

Next, you must set the auto_profile_type engine variable to FULL or LITE:

SET GLOBAL auto_profile_type = FULL | LITE;

Note

If you choose to utilize auto profiling, if you decide to turn it off (enable_auto_profile = OFF;), your plans will be recompiled. This can cause a serious slowdown in a heavy online workload, so you may wish to do this during slack time or scheduled downtime. You can toggle between LITE and FULL auto profiling instead (SET GLOBAL auto_profile_type = FULL | LITE;).

Auto Profiling Use Cases

Capturing Live vs Historical Profiles

The profiles of both explicitly- and auto-profiled queries are obtained using the same method. Live profiles can be obtained from actively running queries. Historical profiles are associated with query plans.

Live profiles (also called a partial profile) are available if the query is profiled while currently executing. Information about the query's execution can be retrieved by running the SHOW PROCESSLIST command. Using the ID from the SHOW PROCESSLIST results as the process_id, the live profile can be obtained by running the following command in a different session. The user must have PROCESS permission.

SHOW PROFILE [JSON] PROCESS <process_id>;

Note

Please note that when you run SHOW PROFILE PROCESS on a running query, the query's execution will be interrupted as the engine gathers the currently collected statistics to be returned to the client. It's important to avoid running SHOW PROFILE PROCESS at high frequency, as it can degrade the performance of the query.

To obtain a comprehensive profile after the session has completed the execution of the profiled query, you can simply run SHOW PROFILE [JSON] (without the PROCESS and process_id arguments) from the same session that just finished executing the query. This applies to both explicitly profiled queries and auto-profiled queries that have collected statistics.

Historical profiles are obtained by adding a PLAN and plan_id argument to the SHOW PROFILE command. The plan_id is obtained by running the SHOW PLANCACHE command. If there are a lot of query plans to filter through, it is easier to query the information_schema.PLANCACHE view with the appropriate filters to narrow the search for the correct plan.

SHOW PROFILE [JSON] PLAN <plan_id>;

Profile statistics from previous executions are stored independently of individual users and sessions. Therefore, in a scenario where two sessions are concurrently profiling the same query plan, the profile statistics of the session that finishes execution last will be displayed when running SHOW PROFILE PLAN. This is where running SHOW PROFILE on the session that finished first becomes useful, as the profile statistics from that session's query execution remain available.

There is no way to manually drop historical query profiles without removing the associated query plan from the in-memory plancache. However, they are automatically dropped when the associated query plan expires from the in-memory plancache.

Profiling Use Cases in Production Environments

The following use cases assume the auto profile type is set to LITE except for the last use case.

  • Investigating why a query inexplicably slows down:

    Despite the absence of operators' individual execution times and network times in the initial run, the plan's profile stats still include the total execution time, row counts, and memory usage. As a result, if the query plan starts running slower than anticipated, the user can save the initial run's stats and perform an explicit profile execution. The explicit profile will show which parts of the query are most expensive and how the query execution has changed by comparing row counts, memory usages, and network traffic.

  • Investigating why a workload or a procedure inexplicably slows down:

    In this situation, if the exact issue cannot be identified through workload profiling and existing monitoring tools, the auto_profile_type can be set to FULL to collect basic stats from the procedures and or sessions that require profiling. Additionally, during intervals between query executions, the user can periodically send SHOW PROFILE [JSON] PLAN queries to persist individual profiles. If more detailed stats are needed for specific query plans, the explicit profile approach can be utilized.

  • Checking whether a long-running query is progressing or should be terminated:

    The user can capture and save a live profile of the query assuming the query is collecting statistics. After waiting for a few minutes, the user can capture another live profile and compare the two profiles, specifically examining the row counts. If the row counts have changed, it indicates that the query is making progress, but if they haven't, it is likely that the query is stuck at some point. Or, if the row counts are only changing for one operator, then that operator may be the source of the slowness; refactoring the query or changing table and index structures may improve that.

  • Determining which query plans are more likely to be resource-intensive:

    In this situation, the user may anticipate high demand from their application and consequently expect increased resource usage during a specific time window. To proactively prepare, the user can analyze the profile stats of existing plans to estimate which plans are likely to be more resource-demanding on the cluster.

  • Obtaining actual profiling information from users so the support team can troubleshoot query performance issues:

    This situation is especially helpful when a potentially degraded query is part of a workload and it's difficult to profile the individual queries. Also, some query degradation presents itself intermittently. Setting auto profiling can capture the unexpected performance decline.

Profiling Use Cases in Query/Workload Tuning

  • Understanding what the impact would be if new DML queries are added to a workload:

    The user can switch the auto_profile_type to FULL, execute the workload, and then switch the auto_profile_type back to LITE. Then, the user can obtain profile statistics on the query plans that were executed as part of the workload. If specific query plans require detailed information such as individual execution times and network times, the user can explicitly profile them as well.

  • Performance testing a stored procedure:

    Typically, workload profiling is the primary approach for analyzing the performance of an entire workload. Query profiling is intended to complement workload profiling, so if there is a noticeable change in the workload profiling results, query profiles of both new and existing DML queries can be captured and compared. It is important to note that the profiles of existing DML queries may undergo significant changes due to the introduction of new DML queries, which can potentially alter row counts. Leveraging auto profiles can assist in capturing these changes effectively.

Studio Visual Explain

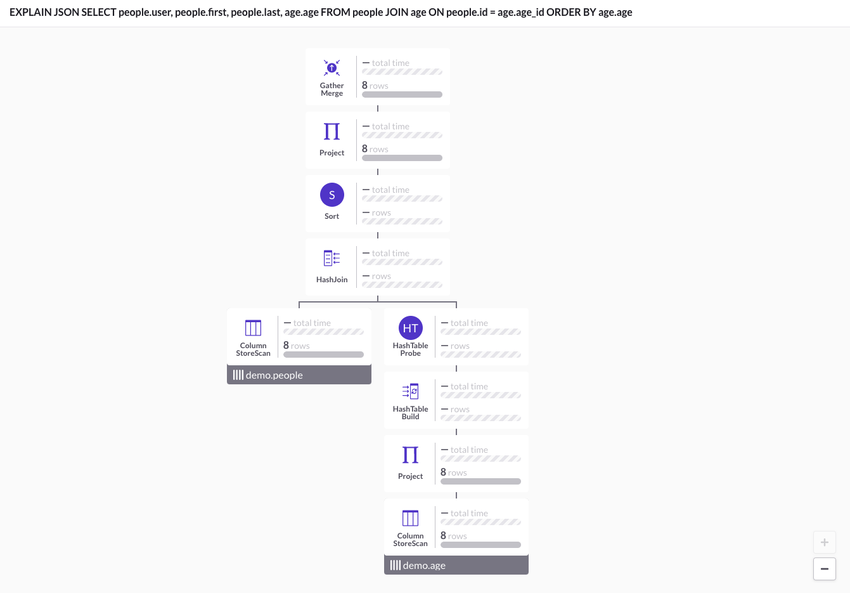

The SingleStoreDB Cloud Visual Explain page is a feature of Studio that allows customers to see a query plan visualized via a graphical interface. This is useful for tuning database queries to reduce run-time or resource usage. See SingleStoreDB Visual Explain for more details.

Query Plan Operations

This topic describes the operations that a query plan may use. These operations are displayed when you use Visual Explain, run EXPLAIN, or run PROFILE to show a query plan. The examples in this topic use two tables : t, a rowstore table with a primary key, and ct a columnstore table. These tables are both in database db1. For more information about interpreting these operators to increase performance, see the Query Tuning Guide.

CREATE ROWSTORE TABLE t(id INT PRIMARY KEY, a INT, b INT, KEY(a));

CREATE TABLE ct(a INT, b INT, SORT KEY(a), SHARD KEY(a));

Table access methods

  • Project - outputs a subset of columns of the input (for example, a SELECTstatement that calls out specific columns from a table) in a particular order, and optionally computes new columns that are expressions of existing ones (for example, SELECT column_a / column_b AS column_c FROM table_name).

  • TableScan - scans every row in a table using an index

  • IndexSeek - navigates to a particular row using an index

  • IndexRangeScan - scans a range of rows using an index

  • ColumnStoreScan - scans a columnstore table

  • OrderedColumnStoreScan - scans a table using the columnstore sort key in key order

EXPLAIN SELECT * FROM t WHERE t.a = 5;
****
+---------------------------------------------+
| EXPLAIN                                     |
+---------------------------------------------+
| Project [t.id, t.a, t.b]                    |
| Gather partitions:all                       |
| Project [t.id, t.a, t.b]                    |
| IndexRangeScan db.t, KEY a (a) scan:[a = 5] |
+---------------------------------------------+
EXPLAIN SELECT * FROM ct;
****
+---------------------------------------------------------------+
| EXPLAIN                                                       |
+---------------------------------------------------------------+
| Project [ct.a, ct.b]                                          |
| Gather partitions:all                                         |
| Project [ct.a, ct.b]                                          |
| ColumnStoreScan db1.ct, KEY a (a) USING CLUSTERED COLUMNSTORE |
+---------------------------------------------------------------+

Filter Methods

  • Filter - reads a stream of input rows and outputs only those rows that match a specified condition

  • BloomFilter - filters rows based on matching them against a join condition from a corresponding HashJoin

The following examples show how Bloomfilter can appear in a query plan alone, and how it can appear as part of ColumnstoreFilter when used on a columnstore table, respectively.

EXPLAIN SELECT * FROM rowstore_table_a straight_join (SELECT WITH (no_merge_this_select=true) * FROM columnstore_table_a) t WITH (bloom_filter=true) ON t.column_b = rowstore_table_a.column_b;
****
+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                                                                                                 |
+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Top limit:[@@SESSION.`sql_select_limit`]                                                                                                                                |
| Gather partitions:all est_rows:1 alias:remote_0                                                                                                                         |
| Project [r0.column_a, r0.column_b, r1.column_a AS column_a_1, r1.column_b AS column_b_2] est_rows:1 est_select_cost:4                                                   |
| Top limit:[?]                                                                                                                                                           |
| HashJoin                                                                                                                                                                |
| |---HashTableProbe [r1.column_b = r0.column_b]                                                                                                                          |
| | HashTableBuild alias:r1                                                                                                                                               |
| | Repartition [columnstore_table_a.column_a, columnstore_table_a.column_b] AS r1 shard_key:[column_b] est_rows:1                                                        |
| ColumnStoreScan database_name.columnstore_table_a, KEY column_a (column_a) USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:1 est_filtered:1   |
| TableScan r0 storage:list stream:yes table_type:sharded est_table_rows:1 est_filtered:1                                                                                 |
| Repartition [rowstore_table_a.column_a, rowstore_table_a.column_b] AS r0 shard_key:[column_b] est_rows:1                                                                |
| TableScan database_name.rowstore_table_a table_type:sharded_rowstore est_table_rows:1 est_filtered:1                                                                    |
+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
EXPLAIN SELECT * FROM columnstore_table_b straight_join (SELECT WITH (no_merge_this_select=true) * FROM columnstore_table_a) t WITH (bloom_filter=true) ON t.column_b = columnstore_table_b.column_b;
****
+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                                                                                                 |
+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Top limit:[@@SESSION.`sql_select_limit`]                                                                                                                                |
| Gather partitions:all est_rows:1 alias:remote_0                                                                                                                         |
| Project [r0.column_a, r0.column_b, r1.column_a AS column_a_1, r1.column_b AS column_b_2] est_rows:1 est_select_cost:4                                                   |
| Top limit:[?]                                                                                                                                                           |
| HashJoin                                                                                                                                                                |
| |---HashTableProbe [r1.column_b = r0.column_b]                                                                                                                          |
| | HashTableBuild alias:r1                                                                                                                                               |
| | Repartition [columnstore_table_a.column_a, columnstore_table_a.column_b] AS r1 shard_key:[column_b] est_rows:1                                                        |
| | ColumnStoreScan database_name.columnstore_table_a, KEY column_a (column_a) USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:1 est_filtered:1 |
| TableScan r0 storage:list stream:yes table_type:sharded est_table_rows:1 est_filtered:1                                                                                 |
| Repartition [columnstore_table_b.column_a, columnstore_table_b.column_b] AS r0 shard_key:[column_b] est_rows:1                                                          |
| ColumnStoreScan database_name.columnstore_table_b, KEY column_a (column_a) USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:1 est_filtered:1   |
+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

ColumnstoreFilter Table Access Method: Applies a Filter to a Columnstore Table

The following example demonstrates the ColumnstoreFilter query operation, using the table articles:

CREATE TABLE articles (
  id INT UNSIGNED,
  year int UNSIGNED,
  title VARCHAR(200),
  body TEXT,
  SHARD KEY(id),
  SORT KEY (id),
  KEY (id) USING HASH,
  KEY (title) USING HASH,
  KEY (year) USING HASH);

The EXPLAIN statement shows the ColumnStoreFilter operation with index, because a hash index is used to apply the filter.

EXPLAIN SELECT * FROM articles WHERE title = 'Interesting title here';
****
+------------------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                              |
+------------------------------------------------------------------------------------------------------+
| Gather partitions:all alias:remote_0                                                                 |
| Project [articles.id, articles.year, articles.title, articles.body]                                  |
| ColumnStoreFilter [articles.title = 'Interesting title here' index]                                  |
| ColumnStoreScan d.articles, KEY id_2 (id) USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore |
+------------------------------------------------------------------------------------------------------+

GROUP BY and Aggregations

  • Aggregate - computes an aggregate

  • HashGroupBy - uses a hash table to compute group by results

  • StreamingGroupBy - leverages the fact that the underlying operation produces rows in order to compute group by results. The advantage of StreamingGroupBy is that it only uses a constant amount of memory

  • ShuffleGroupBy - occurs when a GROUP BY clause operates on a set of columns that do not include the shard key. First, a local GROUP BY is performed per host. Then, the data is repartitioned and GROUP BY is completed.

  • Distinct - removes duplicate rows

EXPLAIN SELECT SUM(id) FROM t;
****
+-----------------------------------------+
| EXPLAIN                                 |
+-----------------------------------------+
| Project [`sum(id)`]                     |
| Aggregate [SUM(`sum(id)`) AS `sum(id)`] |
| Gather partitions:all                   |
| Project [`sum(id)`]                     |
| Aggregate [SUM(t.id) AS `sum(id)`]      |
| TableScan db1.t, PRIMARY KEY (id)       |
+-----------------------------------------+
EXPLAIN SELECT SUM(id) FROM t GROUP BY a+1;
****
+------------------------------------------------------------+
| EXPLAIN                                                    |
+------------------------------------------------------------+
| Project [`sum(id)`]                                        |
| HashGroupBy [SUM(`sum(id)`) AS `sum(id)`] groups:[t.a + 1] |
| Gather partitions:all                                      |
| Project [`sum(id)`, t.a + 1 AS op, t.a, 1 AS op_1]         |
| HashGroupBy [SUM(t.id) AS `sum(id)`] groups:[t.a + 1]      |
| TableScan db1.t, PRIMARY KEY (id)                          |
+------------------------------------------------------------+

Distributed data movement

  • Gather - collects all the results from the leaf nodes to the aggregator node. When a query can be routed to a single partition it has the attribute partitions:single. If Gather collects data from all the partitions the attribute is set to partitions:all. If the shard key matches an IN list predicate, then the attribute is set to partitions:inlist. The query will only be sent to partitions that match the values in the IN list. Queries that have partitions:single are called single partition queries. An advantage of single partition queries is that they can scale to much higher concurrency and throughput because they only need to execute on a single partition.

  • GatherMerge - collects ordered streams of rows from the leaf nodes and merges them to output an ordered stream.

EXPLAIN SELECT * FROM t WHERE id = 1;
****
+-------------------------------------------------+
| EXPLAIN                                         |
+-------------------------------------------------+
| Gather partitions:single                        |
| Project [t.id, t.a, t.b]                        |
| IndexSeek db1.t, PRIMARY KEY (id) scan:[id = 1] |
+-------------------------------------------------+
EXPLAIN SELECT * FROM t WHERE id > 1;
****
+------------------------------------------------------+
| EXPLAIN                                              |
+------------------------------------------------------+
| Project [t.id, t.a, t.b]                             |
| Gather partitions:all                                |
| Project [t.id, t.a, t.b]                             |
| IndexRangeScan db1.t, PRIMARY KEY (id) scan:[id > 1] |
+------------------------------------------------------+
EXPLAIN SELECT * FROM t WHERE id IN (2,3,4);
****
+-----------------------------------------------------------------------------------+
| EXPLAIN                                                                           |
+-----------------------------------------------------------------------------------+
| Gather partitions:inlist alias:remote_0                                           |
| Project [t.id, t.a, t.b]                                                          |
| IndexSeek demo.t, PRIMARY KEY (id) scan:[id IN (...)] table_type:sharded_rowstore |
+-----------------------------------------------------------------------------------+
EXPLAIN SELECT * FROM t ORDER BY id;
****
+-----------------------------------+
| EXPLAIN                           |
+-----------------------------------+
| Project [t.id, t.a, t.b]          |
| GatherMerge [t.id] partitions:all |
| Project [t.id, t.a, t.b]          |
| TableScan db.t, PRIMARY KEY (id)  |
+-----------------------------------+
  • Repartition - redistributes a dataset to hash-partition it on a particular key

  • Broadcast - broadcasts a dataset to every node in a workspace

    Note

    For broadcast LEFT JOIN, a BRANCH operator is added to more accurately represent shared computations. A shared result table is now computed once, shown once, and shared across different branches in the plan.

    EXPLAIN SELECT t.*, ct.* FROM t LEFT JOIN ct ON t.a = ct.a;
    ****
    +--------------------------------------------------------------------------------------------------------------------------------------------+
    | EXPLAIN                                                                                                                                    |
    +--------------------------------------------------------------------------------------------------------------------------------------------+
    | Gather partitions:all est_rows:30 alias:remote_0                                                                                           |
    | Project [SUBQ_VWW_1.a, SUBQ_VWW_1.b, SUBQ_VWW_1.a_1, SUBQ_VWW_1.b_2] est_rows:30 est_select_cost:32                                        |
    | TableScan 1tmp AS SUBQ_VWW_1 storage:list stream:yes est_table_rows:30 est_filtered:30                                                     |
    | UnionAll est_rows:30                                                                                                                       |
    | |---Project [r4.a, r4.b, r4.a_1, r4.b_2] est_rows:1                                                                                        |
    | |   Filter [$0 = 8]                                                                                                                        |
    | |   HashGroupBy [COUNT(*) AS $0] groups:[r4.i0]                                                                                            |
    | |   TableScan r4 storage:list stream:no table_type:sharded est_table_rows:30 est_filtered:30                                               |
    | |   Project [r3.i0, r3.a, r3.b, r3.a_1, r3.b_2] alias:r4 est_rows:30                                                                       |
    | |   TableScan r3 storage:list stream:yes table_type:sharded est_table_rows:30 est_filtered:30                                              |
    | |   Repartition AS r3 shard_key:[i0] est_rows:30                                                                                           |
    | |   Branch [SUBQ_VWW_0.ConstIntCol IS NULL] position:[2/2]                                                                               |
    | Project [r2.a, r2.b, r2.a_1, r2.b_2] est_rows:30                                                                                           |
    | TableScan r2 storage:list stream:yes table_type:sharded est_table_rows:30 est_filtered:30                                                  |
    | Project [r1.i0, r1.a, r1.b, SUBQ_VWW_0.a_1, SUBQ_VWW_0.b_2] alias:r2 est_rows:30                                                           |
    | Branch [SUBQ_VWW_0.ConstIntCol IS NOT NULL] position:[1/2]                                                                                 |
    | HashJoin type:right                                                                                                                        |
    | |---HashTableProbe [r1.a = SUBQ_VWW_0.a_1]                                                                                                 |
    | |   HashTableBuild alias:r1                                                                                                                |
    | |   Project [r0.a, r0.b, i0] alias:r1 hash_key:[a] est_rows:1                                                                              |
    | |   Window [ROW_NUMBER() OVER () AS i0]                                                                                                    |
    | |   TableScan r0 storage:list stream:yes table_type:reference est_table_rows:1 est_filtered:1                                              |
    | |   Broadcast [t.a, t.b] AS r0 distribution:tree est_rows:1                                                                                |
    | |   ColumnStoreScan test1.t, KEY __UNORDERED () USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:1 est_filtered:1 |
    | TableScan 0tmp AS SUBQ_VWW_0 storage:list stream:yes est_table_rows:3,072 est_filtered:3,072                                               |
    | Project [ct.a AS a_1, ct.b AS b_2, 0 AS ConstIntCol] est_rows:3,072                                                                        |
    | ColumnStoreScan test1.ct, KEY a (a) USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:3,072 est_filtered:3,072     |
    +--------------------------------------------------------------------------------------------------------------------------------------------+
    27 rows in set (0.01 sec)
EXPLAIN SELECT * FROM t,ct WHERE t.id = ct.b;
****
+-----------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                       |
+-----------------------------------------------------------------------------------------------+
| Project [t.id, t.a, t.b, r0.a_1, r0.b_2]                                                      |
| Gather partitions:all est_rows:1                                                              |
| Project [t.id, t.a, t.b, r0.a_1, r0.b_2] est_rows:1 est_select_cost:3                         |
| NestedLoopJoin                                                                                |
| |---IndexSeek db1.t, PRIMARY KEY (id) scan:[id = r0.b_2] est_table_rows:1 est_filtered:1      |
| TableScan r0 storage:list stream:no                                                           |
| Repartition [ct.a AS a_1, ct.b AS b_2] AS r0 shard_key:[b_2] est_rows:1                       |
| ColumnStoreScan db1.ct, KEY a (a) USING CLUSTERED COLUMNSTORE est_table_rows:1 est_filtered:1 |
+-----------------------------------------------------------------------------------------------+
  • ChoosePlan indicates that SingleStore will choose one of the listed plans at runtime based on cost estimates. estimate illustrates the statistics that are being estimated, but note that these SQL statements are not actually estimated. Instead, SingleStore uses index information to estimate these statistics.

EXPLAIN SELECT * FROM t WHERE id > 5 AND a > 5;
****
+-----------------------------------------------------------+
| EXPLAIN                                                   |
+-----------------------------------------------------------+
| Project [t.id, t.a, t.b]                                  |
| Gather partitions:all                                     |
| Project [t.id, t.a, t.b]                                  |
| ChoosePlan                                                |
| |   :estimate                                             |
| |       SELECT COUNT(*) AS cost FROM db1.t WHERE t.id > 5 |
| |       SELECT COUNT(*) AS cost FROM db1.t WHERE t.a > 5  |
| |---Filter [t.a > 5]                                      |
| |   IndexRangeScan db1.t, PRIMARY KEY (id) scan:[id > 5]  |
| +---Filter [t.id > 5]                                     |
|     IndexRangeScan db1.t, KEY a (a) scan:[a > 5]          |
+-----------------------------------------------------------+

Joins

The following are the three types of joins that the optimizer can perform. They are listed in order of least complex to the most complex algorithm to complete.

  1. NestedLoopJoin - performs a nested loop join: for every row on the outer side of the join SingleStore scans into the inner table to find all the matching rows.

    The complexity of the NestedLoopJoin operation is on the order of the number of rows in the outer table times the number of rows on the inner table. If there are millions of rows in each table, this operation is not efficient. It is best to add an index and or shard keys to the tables for that use case.

    If no index or shard key exists in either table, the optimizer performs keyless sharding or sorting on the table outer table before the NestedLoopJoin operation. This is displayed by an index seek operation in the EXPLAIN output.

    This is the fallback join that the optimizer will perform if all other joins fail.

  2. HashJoin - performs a hash join: SingleStore builds a hash table from one of the joined tables. For every row in the left table, the hash table is probed. If there is a match, the rows are joined.

    The hash table must fit in memory, so SingleStore attempts to create the hash table from the smaller of the two tables. If there isn't enough memory, a NestedLoopJoin is performed.

  3. MergeJoin - performs a merge join: SingleStore scans both inner and outer sides of the join at the same time and merges matching rows. Both tables must have a sort key(s) and shard key(s) on the column that is being joined. If none of these conditions exist, the other two joins are considered.

    Since values to be joined are in sort order, both tables are scanned at the same time. The optimizer needs to perform only one scan. The shard key requirement makes the join local ensuring we only consider matches on each partition. This is why the MergeJoin is the most performant.

EXPLAIN SELECT * FROM t t1, t t2 WHERE t1.id = t2.a;
****
+------------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                        |
+------------------------------------------------------------------------------------------------+
| Project [t1.id, t1.a, t1.b, r0.id_1, r0.a_2, r0.b_3]                                           |
| Gather partitions:all est_rows:1                                                               |
| Project [t1.id, t1.a, t1.b, r0.id_1, r0.a_2, r0.b_3] est_rows:1 est_select_cost:3              |
| NestedLoopJoin                                                                                 |
| |---IndexSeek db1.t AS t1, PRIMARY KEY (id) scan:[id = r0.a_2] est_table_rows:1 est_filtered:1 |
| TableScan r0 storage:list stream:no                                                            |
| Repartition [t2.id AS id_1, t2.a AS a_2, t2.b AS b_3] AS r0 shard_key:[a_2] est_rows:1         |
| TableScan db1.t AS t2, PRIMARY KEY (id) est_table_rows:1 est_filtered:1                        |
+------------------------------------------------------------------------------------------------+
EXPLAIN SELECT * FROM t, ct WHERE t.b = ct.b;
****
+-----------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                       |
+-----------------------------------------------------------------------------------------------+
| Project [r1.id, r1.a, r1.b, ct.a AS a_1, ct.b AS b_2]                                         |
| Gather partitions:all est_rows:1                                                              |
| Project [r1.id, r1.a, r1.b, ct.a AS a_1, ct.b AS b_2] est_rows:1 est_select_cost:4            |
| HashJoin [r1.b = ct.b]                                                                        |
| |---Broadcast [t.id, t.a, t.b] AS r1 est_rows:1                                               |
| |   TableScan db1.t, PRIMARY KEY (id) est_table_rows:1 est_filtered:1                         |
| ColumnStoreScan db1.ct, KEY a (a) USING CLUSTERED COLUMNSTORE est_table_rows:1 est_filtered:1 |
+-----------------------------------------------------------------------------------------------+
EXPLAIN SELECT * FROM ct t1, ct t2 WHERE t1.a = t2.a;
****
+--------------------------------------------------------------------------------+
| EXPLAIN                                                                        |
+--------------------------------------------------------------------------------+
| Project [t1.a, t1.b, t2.a, t2.b]                                               |
| Gather partitions:all                                                          |
| Project [t1.a, t1.b, t2.a, t2.b]                                               |
| MergeJoin condition:[t2.a = t1.a]                                              |
| |---OrderedColumnStoreScan db1.ct AS t2, KEY a (a) USING CLUSTERED COLUMNSTORE |
| +---OrderedColumnStoreScan db1.ct AS t1, KEY a (a) USING CLUSTERED COLUMNSTORE |
+--------------------------------------------------------------------------------+

Handling Parameter-Dependent Query Plan Issues

A parameter-dependent query plan issue can occur when the query optimizer generates a query execution plan optimized for a specific parameter value/set of values. Because parameter values can change, a cached plan is no longer optimal for parameter values that are used in consecutive executions. These types of plans can cause query performance problems.

Workarounds that can reduce parameter-dependent query plan performance issues are:

  • Using both the with(row_count=xxx) and with(selectivity=x.x) query hints. The hints can be used with the right table after the JOIN:

    JOIN <table_name> [AS alias] with(row_count=xxx, selectivity=x.x) ON

    These hints override the statistics the query optimizer uses. with(row_count=xxx) treats the table as having xxx number of rows. with(selectivity=x.x) sets an estimate of the fraction of the table's rows that are not filtered.

  • Using the NOPARAM function. This function disables the parameterization of constants before a query plan is compiled. Please be aware when disabling parameterization, separate query plans are created for the different parameter values thereby causing an increase in compiling time and resources.

  • Adding comments to the query. Comments are not parameterized, so using them forces the optimizer to generate different plans.

    Please note, the client can remove the comments in a query, thereby preventing the effectiveness of this workaround.

    For example:

    SELECT /*1*/ 1;

    The server could receive the following command:

    SELECT 1;

    Again, please be aware of the increase in compiling time and resources needed when separate query plans are created.

Query Performance Tool Results For The Same Query

Using a join between the people and age tables shown in the shard key and sort key topics, this is what we get when we submit the same query to EXPLAIN, PROFILE, and VISUAL EXPLAIN.

EXPLAIN:

EXPLAIN SELECT people.user, people.first, people.last, age.age
FROM people JOIN age ON people.id = age.age_id
ORDER BY age.age;
****

+----------------------------------------------------------------------------------------------------------------------------------------------------+
| EXPLAIN                                                                                                                                            |
+----------------------------------------------------------------------------------------------------------------------------------------------------+
| GatherMerge [remote_0.age] partitions:all est_rows:8 alias:remote_0                                                                                |
| Project [people.user, people.first, people.last, age.age] est_rows:8 est_select_cost:16                                                            |
| TopSort limit:[?] [age.age]                                                                                                                        |
| HashJoin                                                                                                                                           |
| |---HashTableProbe [people.id = age.age_id]                                                                                                        |
| | HashTableBuild alias:age                                                                                                                         |
| | Project [age_0.age, age_0.age_id] est_rows:8                                                                                                     |
| | ColumnStoreScan demo.age AS age_0, KEY __UNORDERED () USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:8 est_filtered:8 |
| ColumnStoreScan demo.people, KEY __UNORDERED () USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:8 est_filtered:8         |
+----------------------------------------------------------------------------------------------------------------------------------------------------+

PROFILE:

PROFILE SELECT people.user, people.first, people.last, age.age
FROM people JOIN age ON people.id = age.age_id
ORDER BY age.age;
****

+-------------+-----------+------------+-----+
| user        | first     | last       | age |
+-------------+-----------+------------+------
| cjohnson    | carrie    | johnson    | 10  |
| dyarbrough  | dennis    | yarbrough  | 13  |
| pquincy     | penelope  | quincy     | 21  |
| cachebe     | chioma    | achebe     | 29  |
| jmalik      | jahid     | malik      | 35  |
| kharris     | keisha    | harris     | 43  |
| tling       | tai       | ling       | 67  |
| sstevens    | samuel    | stevens    | 72  |
+-------------+-----------+------------+-----+

{
    "plan_warnings": {
},
    "execution_warnings": {
},
    "mpl_path":"\/var\/lib\/memsql\/instance\/plancache\/a91\/Select_profile_age__et_al_a9111431d10dfe90ceed8b3f2b8e9c1d9706242c27af5f7ee4e97d7d3954a29a_6400bba1c33851b2",
    "profile":[
        {
            "executor":"GatherMerge",
            "keyId":4295163904,
            "order":[
                "remote_0.age"
                ],
            "partitions":"all",
            "est_rows":"8",
            "est_rows_source":"JOIN",
            "query":"SELECT STRAIGHT_JOIN `people`.`user` AS `user`, `people`.`first` AS `first`, `people`.`last` AS `last`, `age`.`age` AS `age` FROM (`demo_0`.`people` as `people`  STRAIGHT_JOIN  ( SELECT WITH(NO_MERGE_THIS_SELECT=1) `age_0`.`age` AS `age`, `age_0`.`age_id` AS `age_id` FROM `demo_0`.`age` as `age_0`  ) AS `age`WITH (gen_min_max = TRUE)) WHERE (`people`.`id` = `age`.`age_id`) ORDER BY 4 \/*!90623 OPTION(NO_QUERY_REWRITE=1, INTERPRETER_MODE=INTERPRET_FIRST, CLIENT_FOUND_ROWS=1)*\/",
            "alias":"remote_0",
            "actual_total_time":{ "value":0 },
            "start_time":{ "value":0 },
            "end_time":{ "value":1 },
            "actual_row_count":{ "value":8, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
            "inputs":[
                {
                    "executor":"Project",
                    "keyId":196736,
                    "out":[
                        {
                            "alias":"",
                            "projection":"people.user"
                            },
                        {
                            "alias":"",
                            "projection":"people.first"
                            },
                        {
                            "alias":"",
                            "projection":"people.last"
                            },
                        {
                            "alias":"",
                            "projection":"age.age"
                            }
                        ],
                    "est_rows":"8",
                    "est_rows_source":"JOIN",
                    "est_select_cost":"16",
                    "subselects":[],
                    "actual_row_count":{ "value":8, "avg":4.000000, "stddev":1.000000, "max":5, "maxPartition":0 },
                    "actual_total_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                    "start_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                    "network_traffic":{ "value":202, "avg":101.000000, "stddev":18.000000, "max":119, "maxPartition":0 },
                    "network_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                    "inputs":[
                        {
                            "executor":"Sort",
                            "keyId":196744,
                            "order":[
                                "age.age"
                                ],
                            "actual_row_count":{ "value":8, "avg":4.000000, "stddev":1.000000, "max":5, "maxPartition":0 },
                            "actual_total_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                            "start_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                            "memory_usage":{ "value":785424, "avg":392712.000000, "stddev":0.000000, "max":392712, "maxPartition":0 },
                            "inputs":[
                                {
                                    "executor":"HashJoin",
                                    "keyId":327681,
                                    "type":"inner",
                                    "subselects":[],
                                    "actual_row_count":{ "value":8, "avg":4.000000, "stddev":1.000000, "max":5, "maxPartition":0 },
                                    "actual_total_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                    "start_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                    "inputs":[
                                        {
                                            "executor":"HashTableProbe",
                                            "keyId":327825,
                                            "condition":[
                                                "people.id = age.age_id"
                                                ],
                                            "inputs":[
                                                {
                                                    "executor":"HashTableBuild",
                                                    "keyId":327824,
                                                    "alias":"age",
                                                    "actual_row_count":{ "value":8, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                    "actual_total_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                    "start_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                    "memory_usage":{ "value":262144, "avg":131072.000000, "stddev":0.000000, "max":131072, "maxPartition":0 },
                                                    "inputs":[
                                                        {
                                                            "executor":"Project",
                                                            "keyId":327808,
                                                            "out":[
                                                                {
                                                                    "alias":"",
                                                                    "projection":"age_0.age"
                                                                    },
                                                                {
                                                                    "alias":"",
                                                                    "projection":"age_0.age_id"
                                                                    }
                                                                ],
                                                            "est_rows":"8",
                                                            "est_rows_source":"JOIN",
                                                            "subselects":[],
                                                            "actual_row_count":{ "value":8, "avg":4.000000, "stddev":1.000000, "max":5, "maxPartition":0 },
                                                            "actual_total_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                            "start_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                            "inputs":[
                                                                {
                                                                    "executor":"ColumnStoreScan",
                                                                    "keyId":4295360512,
                                                                    "db":"demo",
                                                                    "table":"age",
                                                                    "alias":"age_0",
                                                                    "index":"KEY __UNORDERED () USING CLUSTERED COLUMNSTORE",
                                                                    "storage":"columnar",
                                                                    "table_type":"sharded_columnstore",
                                                                    "columnstore_in_memory_scan_type":"TableScan",
                                                                    "columnstore_in_memory_scan_index":"KEY __UNORDERED () USING CLUSTERED COLUMNSTORE",
                                                                    "est_table_rows":"8",
                                                                    "est_filtered":"8",
                                                                    "est_filtered_source":"DEFAULT",
                                                                    "actual_row_count":{ "value":8, "avg":4.000000, "stddev":1.000000, "max":5, "maxPartition":0 },
                                                                    "actual_total_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                                    "start_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                                    "memory_usage":{ "value":262144, "avg":131072.000000, "stddev":0.000000, "max":131072, "maxPartition":0 },
                                                                    "segments_scanned":{ "value":2, "avg":1.000000, "stddev":0.000000, "max":1, "maxPartition":0 },
                                                                    "segments_skipped":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                                    "segments_fully_contained":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                                    "segments_filter_encoded_data":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                                    "blob_fetch_network_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                                                    "segments_in_blob_cache":{ "value":2, "avg":1.000000, "stddev":0.000000, "max":1, "maxPartition":0 },
                                                                    "inputs":[]
                                                                    }
                                                                ]
                                                            }
                                                        ]
                                                    }
                                                ]
                                            },
                                        {
                                            "executor":"ColumnStoreScan",
                                            "keyId":4295229440,
                                            "db":"demo",
                                            "table":"people",
                                            "alias":"people",
                                            "index":"KEY __UNORDERED () USING CLUSTERED COLUMNSTORE",
                                            "storage":"columnar",
                                            "table_type":"sharded_columnstore",
                                            "columnstore_in_memory_scan_type":"TableScan",
                                            "columnstore_in_memory_scan_index":"KEY __UNORDERED () USING CLUSTERED COLUMNSTORE",
                                            "est_table_rows":"8",
                                            "est_filtered":"8",
                                            "est_filtered_source":"DEFAULT",
                                            "actual_row_count":{ "value":8, "avg":4.000000, "stddev":1.000000, "max":5, "maxPartition":0 },
                                            "actual_total_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                            "start_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                            "memory_usage":{ "value":262144, "avg":131072.000000, "stddev":0.000000, "max":131072, "maxPartition":0 },
                                            "segments_scanned":{ "value":2, "avg":1.000000, "stddev":0.000000, "max":1, "maxPartition":0 },
                                            "segments_skipped":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                            "segments_fully_contained":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                            "segments_filter_encoded_data":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                            "blob_fetch_network_time":{ "value":0, "avg":0.000000, "stddev":0.000000, "max":0, "maxPartition":0 },
                                            "segments_in_blob_cache":{ "value":2, "avg":1.000000, "stddev":0.000000, "max":1, "maxPartition":0 },
                                            "inputs":[]
                                            }
                                        ]
                                    }
                                ]
                            }
                        ]
                    }
                ]
            }
        ],
    "version":"4",
    "info":{
        "memsql_version":"7.5.8",
        "memsql_version_hash":"12c73130aa6881ec53d57b44a654e4bada1a07c5",
        "num_online_leaves":"2",
        "num_online_aggs":"1",
        "context_database":"demo"
        },
    "query_info":{
        "query_text":"PROFILE SELECT people.user, people.first, people.last, age.age\n FROM people\n JOIN age ON people.id = age.age_id\n ORDER BY age.age",
        "total_runtime_ms":"2",
        "text_profile":"GatherMerge [remote_0.age] partitions:all est_rows:8 alias:remote_0 exec_time: 0ms start_time: 00:00:00.000 end_time: 00:00:00.001 actual_rows: 8\nProject [people.user, people.first, people.last, age.age] est_rows:8 est_select_cost:16 actual_rows: 8 exec_time: 0ms start_time: 00:00:00.000 network_traffic: 0.202000 KB network_time: 0ms\nSort [age.age] actual_rows: 8 exec_time: 0ms start_time: 00:00:00.000 memory_usage: 785.424011 KB\nHashJoin actual_rows: 8 exec_time: 0ms start_time: 00:00:00.000\n|---HashTableProbe [people.id = age.age_id]\n|   HashTableBuild alias:age actual_rows: 8 exec_time: 0ms start_time: 00:00:00.000 memory_usage: 262.144012 KB\n|   Project [age_0.age, age_0.age_id] est_rows:8 actual_rows: 8 exec_time: 0ms start_time: 00:00:00.000\n|   ColumnStoreScan demo.age AS age_0, KEY __UNORDERED () USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:8 est_filtered:8 actual_rows: 8 exec_time: 0ms start_time: 00:00:00.000 memory_usage: 262.144012 KB segments_scanned: 2 segments_skipped: 0 segments_fully_contained: 0 blob_fetch_network_time: 0ms segments_in_blob_cache: 2\nColumnStoreScan demo.people, KEY __UNORDERED () USING CLUSTERED COLUMNSTORE table_type:sharded_columnstore est_table_rows:8 est_filtered:8 actual_rows: 8 exec_time: 0ms start_time: 00:00:00.000 memory_usage: 262.144012 KB segments_scanned: 2 segments_skipped: 0 segments_fully_contained: 0 blob_fetch_network_time: 0ms segments_in_blob_cache: 2\nCompile Total Time: 0ms\n",
        "compile_time_stats":{
            "mbc_emission":"0",
            "create_mbc_context":"0",
            "optimizer_query_rewrites":"0",
            "optimizer_stats_analyze":"0",
            "optimizer_stats_other":"0",
            "optimizer_setting_up_subselect":"0",
            "optimizer_distributed_optimizations":"0",
            "optimizer_enumerate_temporary_tables":"0",
            "optimizer_singlebox_optimizations_agg":"0",
            "optimizer_stats_autostats":"0",
            "generating_query_mpl":"0",
            "generating_user_function_mpl":"0",
            "unknown":"0",
            "total":"0"
            }
        }
    }

VISUAL EXPLAIN:

SELECT people.user, people.first, people.last, age.age
FROM people JOIN age ON people.id = age.age_id
ORDER BY age.age;
****
