Important

Helios features are now enabled during weekly update windows and are no longer directly tied to SingleStore engine releases. Refer to the release notes to view the latest features available in your Helios cluster.

Cluster Management Commands

Node Requirements for SingleStore Helios Commands

SingleStore Helios commands must be run on the appropriate type(s) of node in a SingleStore Helios cluster.

When sync_permissions and enable_query_forwarding are set to ON, all Data Definition Language (DDL) commands can be forwarded from child aggregator to master. This list of requirements reflects this behavior.

  • X = recommended to run on this type of node

  • P = possible (but not recommended) to run on this type of node

  • blank = cannot run on this type of node

SingleStore Helios Command

Master Aggregator

Child Aggregator

Leaf

ANALYZE

X

X

ALTER DATABASE

X

X

ALTER RESOURCE POOL

X

X

ALTER TABLE

X

X

P

ALTER VIEW

X

X

P

ALTER USER

X

X

ALTER PIPELINE

X

X

BACKUP DATABASE

X

X

BEGIN

X

X

P

COMMIT

X

X

P

CREATE AGGREGATE

X

X

CREATE DATABASE

X

X

P

CREATE FUNCTION

X

X

CREATE GROUP

X

X

CREATE INDEX

X

X

P

CREATE PIPELINE

X

X

CREATE PROCEDURE

X

X

CREATE RESOURCE POOL

X

X

CREATE ROLE

X

X

CREATE TABLE

X

X

P

CREATE USER

X

X

CREATE VIEW

X

X

DELETE

X

X

P

DESCRIBE

X

X

X

DROP AGGREGATE

X

X

DROP DATABASE

X

X

P

DROP FUNCTION

X

X

DROP GROUP

X

X

DROP INDEX

X

X

P

DROP PIPELINE

X

X

DROP PROCEDURE

X

X

DROP RESOURCE POOL

X

X

DROP ROLE

X

X

DROP TABLE

X

X

P

DROP USER

X

X

X

DROP VIEW

X

X

P

DROP … FROM PLANCACHE

X

X

P

EXPLAIN

X

X

X

FLUSH TABLES

X

P

GRANT

X

X

X

GRANT GROUP

X

X

X

GRANT ROLE

X

X

X

INSERT

X

X

P

KILL CONNECTION

X

X

P

KILLALL QUERIES

X

X

P

LOAD DATA

X

X

P

OPTIMIZE TABLE

X

X

P

PROFILE PIPELINE

X

X

REPAIR DATABASE

X

X

X

REPLACE

X

X

P

RESTORE DATABASE

X

X

ROLLBACK

X

X

P

REVOKE

X

X

REVOKE GROUP

X

X

REVOKE ROLE

X

X

SELECT

X

X

P

SHOW COLUMNS

X

X

SHOW CREATE TABLE

X

X

P

SHOW DATABASES

X

X

P

SHOW GRANTS

X

X

X

SHOW INDEX

X

X

P

SHOW INDEXES

X

X

P

SHOW KEYS

X

X

SHOW PLANCACHE

X

X

X

SHOW PROCESSLIST

X

X

X

SHOW REPLICATION STATUS

X

X

X

SHOW SCHEMAS

X

X

P

SHOW GLOBAL STATUS

X

X

X

SHOW GLOBAL VARIABLES

X

X

X

SHOW RESOURCE POOLS

X

X

P

SHOW SESSION STATUS

X

X

X

SHOW SESSION VARIABLES

X

X

X

SHOW STATUS EXTENDED

X

X

X

SHOW TABLE STATUS

X

X

X

SHOW TABLES

X

X

X

SHOW VARIABLES

X

X

X

SHOW WARNINGS

X

X

X

SHOW ERRORS

X

X

X

START PIPELINE

X

X

STOP PIPELINE

X

X

TRUNCATE

X

X

UNLOCK TABLES

X

UPDATE

X

X

P

USE

X

X

P

Leaf States

Each leaf is in one of the following states:

State

Description

Unknown

In this state, a leaf is not part of the cluster.

Online

This is the default, healthy state of a leaf. In the online state, the leaf is an active member of the distributed system and is either currently serving or ready to serve data to the aggregators.

Offline

The master aggregator periodically sends a heartbeat (ping) to all the nodes in a cluster to determine if they are responsive and online. A leaf enters the offline state if the master aggregator cannot reach it. The heartbeat frequency is based on typical network latencies and node responsiveness. It is set to a default of 150ms which has been empirically determined.

If the cluster is in redundancy 2 any partitions on the offline node will be failed over to the leaves pair. The master aggregator continues to ping offline nodes to detect when they should be moved into the attaching state.

Recovering

Not online, and not available for read or write queries. A leaf in recovering state has been restarted and is replaying data back into memory.

Detached

In this state, the leaf is detached from the cluster.

Attaching

A leaf transitions from offline to attaching when it is once again reachable by heartbeats.

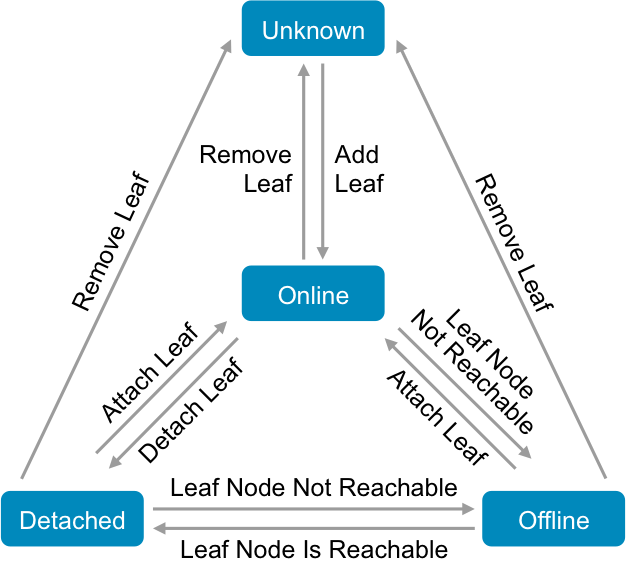

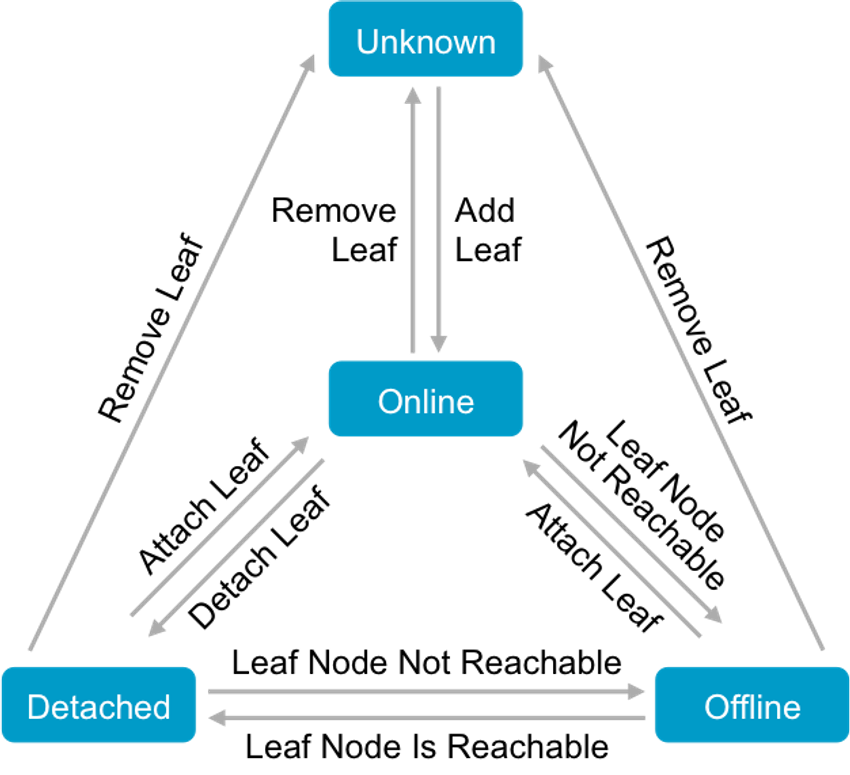

The following diagram summarizes the leaf states and the transitions between them.
